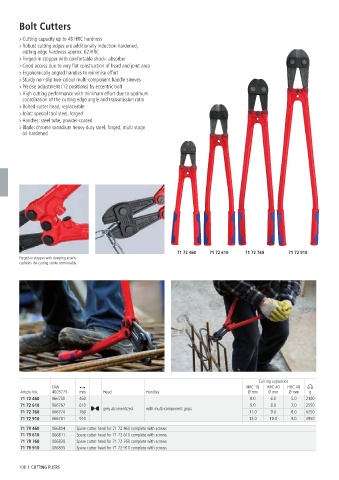

Page 108 - 凯尼派克英文通用样本2024knipex

Bolt Cutters
> Cutting capacity up to 48 HRC hardness
> Robust cutting edges are additionally induction-hardened,
cutting edge hardness approx. 62 HRC
> Forged-in stopper with comfortable shock- absorber
> Good access due to very flat construction of head and joint area
> Ergonomically angled handles to minimise effort
> Sturdy non-slip two-colour multi-component handle sleeves
> Precise adjustment (12 positions) by eccentric bolt
> High cutting performance with minimum effort due to optimum
coordination of the cutting edge angle and transmission ratio
> Bolted cutter head, replaceable
> Joint: special tool steel, forged
> Handles: steel tube, powder-coated
> Blade: chrome vanadium heavy-duty steel, forged, multi stage
oil-hardened

71 72 460 71 72 610 71 72 760 71 72 910
Forged-in stopper with damping inserts:
cushions the cutting stroke comfortably

Cutting capacities
EAN HRC 19 HRC 40 HRC 48
Article No. 4003773- mm Head Handles Ø mm Ø mm Ø mm g
71 72 460 066750 460 8.0 6.0 5.0 2100
71 72 610 066767 610 grey atramentized with multi-component grips 9.0 8.0 7.0 2550
71 72 760 066774 760 11.0 9.0 8.0 4250
71 72 910 066781 910 13.0 10.0 9.0 4950
71 79 460 066804 Spare cutter head for 71 72 460 complete with screws
71 79 610 066811 Spare cutter head for 71 72 610 complete with screws
71 79 760 066828 Spare cutter head for 71 72 760 complete with screws
71 79 910 066835 Spare cutter head for 71 72 910 complete with screws

108 I CUTTING PLIERS
