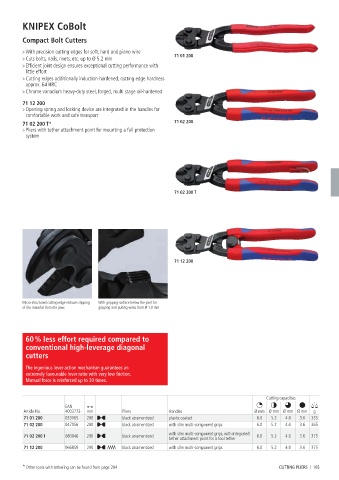

KNIPEX CoBolt
Compact Bolt Cutters
> With precision cutting edges for soft, hard and piano wire
> Cuts bolts, nails, rivets, etc. up to Ø 5.2 mm 71 01 200
> Efficient joint design ensures exceptional cutting performance with
little effort
> Cutting edges additionally induction-hardened, cutting edge hardness
approx. 64 HRC
> Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
71 12 200
> Opening spring and locking device are integrated in the handles for
comfortable work and safe transport
71 02 200 T* 71 02 200
> Pliers with tether attachment point for mounting a fall protection
system
71 02 200 T
71 12 200
Micro-structured cutting edge reduces slipping With gripping surface below the joint for
of the material from the jaws gripping and pulling wires from Ø 1.0 mm
60 % less effort required compared to
conventional high-leverage diagonal
cutters
The ingenious lever action mechanism guarantees an
extremely favourable lever ratio with very low friction.
Manual force is reinforced up to 30 times.
Cutting capacities
EAN
Article No. 4003773- mm Pliers Handles Ø mm Ø mm Ø mm Ø mm g
71 01 200 033165 200 black atramentized plastic coated 6.0 5.2 4.0 3.6 335
71 02 200 047056 200 black atramentized with slim multi-component grips 6.0 5.2 4.0 3.6 365
with slim multi-component grips, with integrated
71 02 200 T 080046 200 black atramentized tether attachment point for a tool tether 6.0 5.2 4.0 3.6 375
71 12 200 066859 200 black atramentized with slim multi-component grips 6.0 5.2 4.0 3.6 375
* Other tools with tethering can be found from page 294 CUTTING PLIERS I 105
