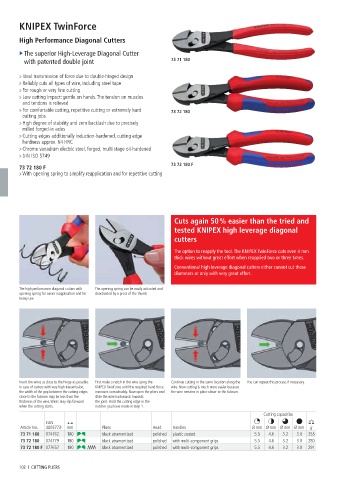

Page 102 - 凯尼派克英文通用样本2024knipex

KNIPEX TwinForce

High Performance Diagonal Cutters

► The superior High-Leverage Diagonal Cutter
with patented double joint 73 71 180

> Ideal transmission of force due to double-hinged design
> Reliably cuts all types of wire, including steel tape
> For rough or very fine cutting
> Low cutting impact: gentle on hands. The tension on muscles
and tendons is relieved
> For comfortable cutting, repetitive cutting or extremely hard 73 72 180
cutting jobs
> High degree of stability and zero backlash due to precisely
milled forged-in axles
> Cutting edges additionally induction-hardened, cutting edge
hardness approx. 64 HRC
> Chrome vanadium electric steel, forged, multi stage oil-hardened
> DIN ISO 5749

73 72 180 F
73 72 180 F
> With opening spring to simplify reapplication and for repetitive cutting

Cuts again 50 % easier than the tried and
tested KNIPEX high leverage diagonal
cutters

The option to reapply the tool. The KNIPEX TwinForce cuts even 4 mm
thick wires without great effort when reapplied two or three times.
Conventional high leverage diagonal cutters either cannot cut these
diameters or only with very great effort.

The high performance diagonal cutters with The opening spring can be easily activated and
opening spring for easier reapplication and for deactivated by a press of the thumb
heavy use

Insert the wires as close to the hinge as possible. First make a notch in the wire using the Continue cutting in the same location along the You can repeat this process if necessary.
In case of cutters with very high transmission, KNIPEX TwinForce until the required hand force wire. Now cutting is much more easier because
the width of the gap between the cutting edges increases considerably. Now open the pliers and the wire remains in place closer to the fulcrum.
close to the fulcrum may be less than the slide the wire backwards towards
thickness of the wire. Wires may slip forward the joint. Hold the cutting edge in the
when the cutting starts. notches you have made in step 1.
Cutting capacities
EAN
Article No. 4003773- mm Pliers Head Handles Ø mm Ø mm Ø mm Ø mm g
73 71 180 074762 180 black atramentized polished plastic coated 5.5 4.6 3.2 3.0 255
73 72 180 074779 180 black atramentized polished with multi-component grips 5.5 4.6 3.2 3.0 280
73 72 180 F 077657 180 black atramentized polished with multi-component grips 5.5 4.6 3.2 3.0 291

102 I CUTTING PLIERS
