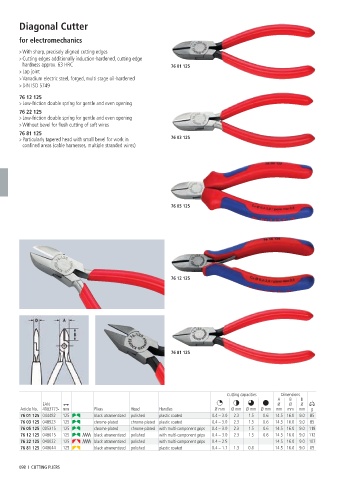

Page 98 - 凯尼派克英文通用样本2024knipex

Diagonal Cutter

for electromechanics

> With sharp, precisely aligned cutting edges
> Cutting edges additionally induction-hardened, cutting edge
hardness approx. 63 HRC 76 01 125
> Lap joint
> Vanadium electric steel, forged, multi stage oil-hardened
> DIN ISO 5749

76 12 125
> Low-friction double spring for gentle and even opening
76 22 125
> Low-friction double spring for gentle and even opening
> Without bevel for flush cutting of soft wires
76 81 125
> Particularly tapered head with small bevel for work in 76 03 125
confined areas (cable harnesses, multiple stranded wires)

76 05 125

76 12 125

76 81 125

Cutting capacities Dimensions
A B D
EAN Ø Ø Ø
Article No. 4003773- mm Pliers Head Handles Ø mm Ø mm Ø mm Ø mm mm mm mm g
76 01 125 044482 125 black atramentized polished plastic coated 0.4 – 3.0 2.3 1.5 0.6 14.5 16.0 9.0 85
76 03 125 048923 125 chrome-plated chrome-plated plastic coated 0.4 – 3.0 2.3 1.5 0.6 14.5 16.0 9.0 85
76 05 125 005315 125 chrome-plated chrome-plated with multi-component grips 0.4 – 3.0 2.3 1.5 0.6 14.5 16.0 9.0 118
76 12 125 048015 125 black atramentized polished with multi-component grips 0.4 – 3.0 2.3 1.5 0.6 14.5 16.0 9.0 112
76 22 125 048022 125 black atramentized polished with multi-component grips 0.4 – 2.5 14.5 16.0 9.0 107
76 81 125 040644 125 black atramentized polished plastic coated 0.4 – 1.7 1.3 0.8 14.5 16.0 9.0 85

098 I CUTTING PLIERS
