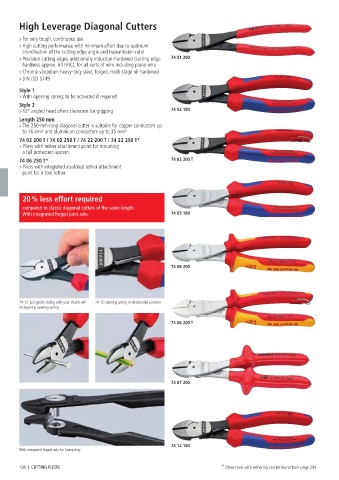

Page 100 - 凯尼派克英文通用样本2024knipex

High Leverage Diagonal Cutters
> For very tough, continuous use
> High cutting performance with minimum effort due to optimum
coordination of the cutting edge angle and transmission ratio
> Precision cutting edges additionally induction-hardened (cutting edge 74 01 200
hardness approx. 64 HRC), for all sorts of wire including piano wire
> Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
> DIN ISO 5749

Style 1
> With opening spring; to be activated if required
Style 2
> 12° angled head offers clearance for gripping 74 02 180
Length 250 mm
> The 250-mm-long diagonal cutter is suitable for copper conductors up
to 16 mm² and aluminium conductors up to 35 mm²
74 02 200 T / 74 02 250 T / 74 22 200 T / 74 22 250 T*
> Pliers with tether attachment point for mounting
a fall protection system
74 06 250 T* 74 02 200 T
> Pliers with integrated insulated tether attachment
point for a tool tether

20 % less effort required
compared to classic diagonal cutters of the same length.
With integrated forged joint axle. 74 05 180

74 06 200

74 12: just gentle sliding with your thumb will 74 12: opening spring in deactivated position
activate the opening spring

74 06 200 T

74 07 200

74 12 180
With integrated forged axle for heavy duty

100 I CUTTING PLIERS * Other tools with tethering can be found from page 294
