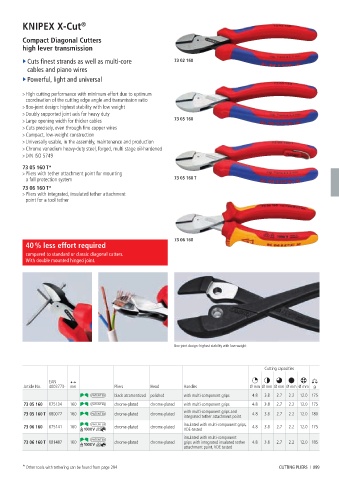

Page 99 - 凯尼派克英文通用样本2024knipex

®
KNIPEX X-Cut

Compact Diagonal Cutters
high lever transmission

► Cuts finest strands as well as multi-core 73 02 160
cables and piano wires

► Powerful, light and universal

> High cutting performance with minimum effort due to optimum
coordination of the cutting edge angle and transmission ratio
> Box-joint design: highest stability with low weight
> Doubly supported joint axis for heavy duty
> Large opening width for thicker cables 73 05 160
> Cuts precisely, even through fine copper wires
> Compact, low-weight construction
> Universally usable, in the assembly, maintenance and production
> Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
> DIN ISO 5749

73 05 160 T*
> Pliers with tether attachment point for mounting
a fall protection system 73 05 160 T
73 06 160 T*
> Pliers with integrated, insulated tether attachment
point for a tool tether

73 06 160
40 % less effort required
compared to standard or classic diagonal cutters.
With double mounted hinged joint.

Box-joint design: highest stability with low weight

Cutting capacities

EAN
Article No. 4003773- mm Pliers Head Handles Ø mm Ø mm Ø mm Ø mm Ø mm g
black atramentized polished with multi-component grips 4.8 3.8 2.7 2.2 12.0 175
73 05 160 075134 160 chrome-plated chrome-plated with multi-component grips 4.8 3.8 2.7 2.2 12.0 175
with multi-component grips and
73 05 160 T 080077 160 chrome-plated chrome-plated integrated tether attachment point 4.8 3.8 2.7 2.2 12.0 180
insulated with multi-component grips,
73 06 160 075141 160 chrome-plated chrome-plated 4.8 3.8 2.7 2.2 12.0 175
VDE-tested
insulated with multi-component

73 06 160 T 081487 160 chrome-plated chrome-plated grips with integrated insulated tether 4.8 3.8 2.7 2.2 12.0 185
attachment point, VDE tested

* Other tools with tethering can be found from page 294 CUTTING PLIERS I 099
