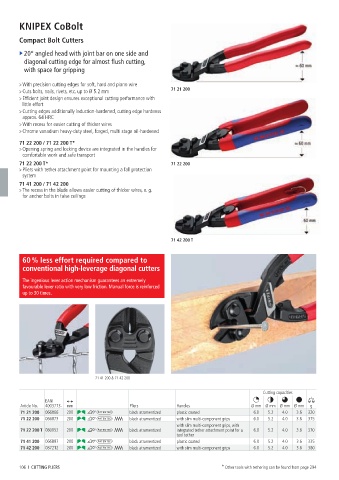

Page 106 - 凯尼派克英文通用样本2024knipex

KNIPEX CoBolt

Compact Bolt Cutters

► 20° angled head with joint bar on one side and
diagonal cutting edge for almost flush cutting,
with space for gripping

> With precision cutting edges for soft, hard and piano wire
> Cuts bolts, nails, rivets, etc. up to Ø 5.2 mm 71 21 200
> Efficient joint design ensures exceptional cutting performance with
little effort
> Cutting edges additionally induction-hardened, cutting edge hardness
approx. 64 HRC
> With recess for easier cutting of thicker wires
> Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened

71 22 200 / 71 22 200 T*
> Opening spring and locking device are integrated in the handles for
comfortable work and safe transport
71 22 200 T* 71 22 200
> Pliers with tether attachment point for mounting a fall protection
system
71 41 200 / 71 42 200
> The recess in the blade allows easier cutting of thicker wires, e. g.
for anchor bolts in false ceilings

71 42 200 T

60 % less effort required compared to
conventional high-leverage diagonal cutters

The ingenious lever action mechanism guarantees an extremely
favourable lever ratio with very low friction. Manual force is reinforced
up to 30 times.

71 41 200 & 71 42 200

Cutting capacities
EAN
Article No. 4003773- mm Pliers Handles Ø mm Ø mm Ø mm Ø mm g
71 21 200 066866 200 20° black atramentized plastic coated 6.0 5.2 4.0 3.6 320
71 22 200 066873 200 20° black atramentized with slim multi-component grips 6.0 5.2 4.0 3.6 375
with slim multi-component grips, with
71 22 200 T 080053 200 20° black atramentized integrated tether attachment point for a 6.0 5.2 4.0 3.6 370
tool tether
71 41 200 066897 200 20° black atramentized plastic coated 6.0 5.2 4.0 3.6 335
71 42 200 087212 200 20° black atramentized with slim multi-component grips 6.0 5.2 4.0 3.6 380

106 I CUTTING PLIERS * Other tools with tethering can be found from page 294
