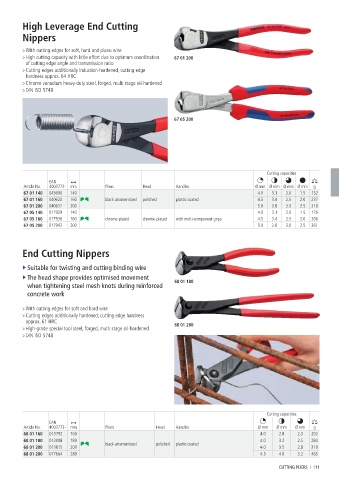

High Leverage End Cutting

Nippers
> With cutting edges for soft, hard and piano wire
> High cutting capacity with little effort due to optimum coordination 67 01 200
of cutting edge angle and transmission ratio
> Cutting edges additionally induction-hardened, cutting edge
hardness approx. 64 HRC
> Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
> DIN ISO 5748

67 05 200

Cutting capacities
EAN
Article No. 4003773- mm Pliers Head Handles Ø mm Ø mm Ø mm Ø mm g
67 01 140 043690 140 4.0 3.1 2.0 1.5 152
67 01 160 040620 160 black atramentized polished plastic coated 4.5 3.4 2.5 2.0 237
67 01 200 040637 200 5.0 3.8 3.0 2.5 318
67 05 140 017929 140 4.0 3.1 2.0 1.5 176
67 05 160 017936 160 chrome-plated chrome-plated with multi-component grips 4.5 3.4 2.5 2.0 266
67 05 200 017943 200 5.0 3.8 3.0 2.5 361

End Cutting Nippers

► Suitable for twisting and cutting binding wire
► The head shape provides optimised movement
when tightening steel mesh knots during reinforced 68 01 180
concrete work

> With cutting edges for soft and hard wire
> Cutting edges additionally hardened; cutting edge hardness
approx. 61 HRC
> High-grade special tool steel, forged, multi stage oil-hardened 68 01 280
> DIN ISO 5748

Cutting capacities
EAN
Article No. 4003773- mm Pliers Head Handles Ø mm Ø mm Ø mm g
68 01 160 013792 160 4.0 2.8 2.3 202
68 01 180 013808 180 4.0 3.2 2.5 284
68 01 200 013815 200 black atramentized polished plastic coated 4.0 3.5 2.8 319
68 01 280 077664 280 4.5 4.0 3.2 465

CUTTING PLIERS I 111
