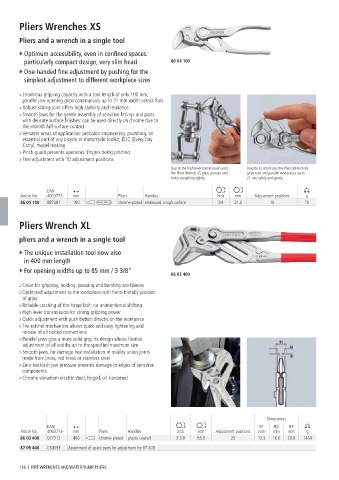

Pliers Wrenches XS

Pliers and a wrench in a single tool

► Optimum accessibility, even in confined spaces:
particularly compact design, very slim head 86 04 100
► One-handed fine adjustment by pushing for the
simplest adjustment to different workpiece sizes

> Enormous gripping capacity with a tool length of only 100 mm;
parallel jaw opening grips continuously up to 21 mm width across flats
> Robust sliding joint offers high stability and resilience
> Smooth jaws for the gentle assembly of sensitive fittings and parts
with delicate surface finishes: can be used directly on chrome due to
the smooth full-surface contact
> Versatile areas of application: precision engineering, plumbing, an
essential part of any bicycle or motorcycle toolkit, EDC (Every Day
Carry), model making
> Pinch guard prevents operators' fingers being pinched
> Fine adjustment with 10 adjustment positions
Due to the high lever transmission joint, Despite its small size, the Pliers Wrench XS
the Pliers Wrench XS grips, presses and grips nuts and parallel workpieces up to
holds everything tightly. 21 mm safely and gently.

EAN
Article No. 4003773- mm Pliers Handles Inch mm Adjustment positions g
86 04 100 087281 100 chrome-plated embossed, rough surface 3/4 21.0 10 70

Pliers Wrench XL

pliers and a wrench in a single tool
► The unique installation tool now also
in 400 mm length

► For opening widths up to 85 mm / 3 3/8"
86 03 400
> Great for gripping, holding, pressing and bending workpieces
> Optimised adjustment to the workpiece with hand-friendly position
of grips
> Reliable catching of the hinge bolt: no unintentional shifting
> High lever transmission for strong gripping power
> Quick adjustment with push button directly on the workpiece
> The ratchet mechanism allows quick and easy tightening and
release of all bolted connections
> Parallel jaws give a more solid grip; its design allows flexible
adjustment of all widths up to the specified maximum size
> Smooth jaws, for damage free installation of quality union joints
made from brass, red brass or stainless steel
> Zero backlash jaw pressure prevents damage to edges of sensitive
components
> Chrome vanadium electric steel, forged, oil-hardened

Dimensions
EAN B1 B2 B3
Article No. 4003773- mm Pliers Handles Inch mm Adjustment positions mm mm mm g
86 03 400 077312 400 chrome-plated plastic coated 3 3/8 85.0 25 12.5 16.0 20.0 1460

87 09 400 034391 Assortment of spare parts for adjustment for 87 400

116 I PIPE WRENCHES AND WATER PUMP PLIERS
