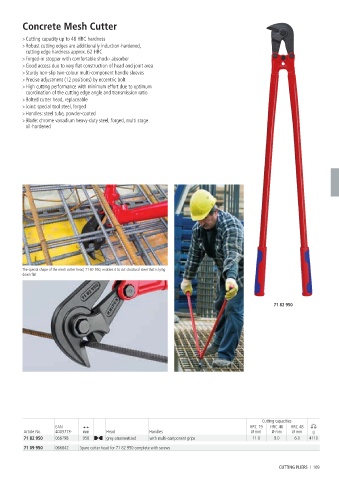

Page 109 - 凯尼派克英文通用样本2024knipex

Concrete Mesh Cutter
> Cutting capacity up to 48 HRC hardness
> Robust cutting edges are additionally induction-hardened,
cutting edge hardness approx. 62 HRC
> Forged-in stopper with comfortable shock- absorber
> Good access due to very flat construction of head and joint area
> Sturdy non-slip two-colour multi-component handle sleeves
> Precise adjustment (12 positions) by eccentric bolt
> High cutting performance with minimum effort due to optimum
coordination of the cutting edge angle and transmission ratio
> Bolted cutter head, replaceable
> Joint: special tool steel, forged
> Handles: steel tube, powder-coated
> Blade: chrome vanadium heavy-duty steel, forged, multi stage
oil-hardened

The special shape of the mesh cutter head, 71 82 950, enables it to cut structural steel that is lying
down flat

71 82 950

Cutting capacities
EAN HRC 19 HRC 40 HRC 48
Article No. 4003773- mm Head Handles Ø mm Ø mm Ø mm g
71 82 950 066798 950 grey atramentized with multi-component grips 11.0 9.0 6.0 4110
71 89 950 066842 Spare cutter head for 71 82 950 complete with screws

CUTTING PLIERS I 109
