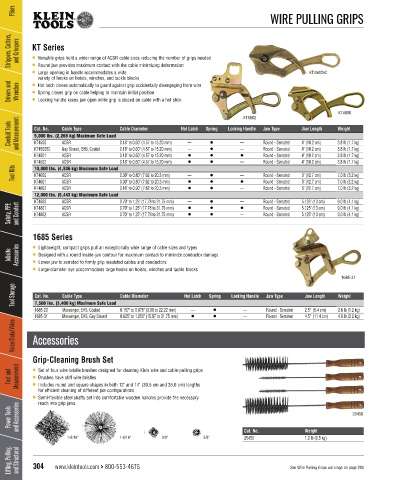

Page 306 - 凯能全英文KleinTools Catalog 167

Pliers
WIRE PULLING GRIPS

Strippers, Cutters, and Crimpers KT Series

•
Versatile grips hold a wider range of ACSR cable sizes reducing the number of grips needed
•
• Round jaw provides maximum contact with the cable minimizing deformation KT45005C
Large opening in handle accommodates a wide
variety of hooks on hoists, winches, and tackle blocks
Drivers and Wrenches • Hot latch closes automatically to guard against grip accidentally disengaging from wire
•
Spring closes grip on cable helping to maintain initial position
•
Locking handle keeps jaw open while grip is placed on cable with a hot stick
KT4800
KT4602
Conduit Tools and Measurement Cat. No. Cable Type Cable Diameter Hot Latch Spring Locking Handle Jaw Type Jaw Length Weight
5,000 lbs. (2,268 kg) Maximum Safe Load
•
—
Round - Serrated
KT4500
—
ACSR
0.18" to 0.60" (4.57 to 15.20 mm)
3.8 lb (1.7 kg)
4" (10.2 cm)
KT45005C
•
•
•
0.18" to 0.60" (4.57 to 15.20 mm)
ACSR
Round - Serrated
4" (10.2 cm)
3.8 lb (1.7 kg)
KT4501 Guy Strand, EHS, Coated 0.18" to 0.60" (4.57 to 15.20 mm) — • — Round - Serrated 4" (10.2 cm) 3.8 lb (1.7 kg)
KT4502 ACSR 0.18" to 0.60" (4.57 to 15.20 mm) • • — Round - Serrated 4" (10.2 cm) 3.8 lb (1.7 kg)
Tool Kits 10,000 lbs. (4,536 kg) Maximum Safe Load 0.30" to 0.80" (7.62 to 20.3 mm) — • — Round - Serrated 5" (12.7 cm) 7.0 lb (3.2 kg)
KT4600
ACSR
KT4601 ACSR 0.30" to 0.80" (7.62 to 20.3 mm) • • • Round - Serrated 5" (12.7 cm) 7.0 lb (3.2 kg)
KT4602 ACSR 0.16" to 0.90" (7.62 to 20.3 mm) • • — Round - Serrated 5" (12.7 cm) 7.0 lb (3.2 kg)
12,000 lbs. (5,443 kg) Maximum Safe Load
KT4800 ACSR 0.70" to 1.25" (17.78 to 31.75 mm) — • — Round - Serrated 5.125" (13 cm) 9.0 lb (4.1 kg)
Safety, PPE and Comfort KT4801 ACSR 0.70" to 1.25" (17.78 to 31.75 mm) • • — Round - Serrated 5.125" (13 cm) 9.0 lb (4.1 kg)
•
•
•
ACSR
5.125" (13 cm)
9.0 lb (4.1 kg)
Round - Serrated
0.70" to 1.25" (17.78 to 31.75 mm)
KT4802
1685 Series
Jobsite Accessories • Lightweight, compact grips pull an exceptionally wide range of cable sizes and types
•
Designed with a round inside-jaw contour for maximum contact to minimize conductor damage
•
Lower jaw is serrated to firmly grip insulated cables and conductors
• Large-diameter eye accommodates large hooks on hoists, winches and tackle blocks
1685-31
Tool Storage Cat. No. Cable Type Cable Diameter Hot Latch Spring Locking Handle Jaw Type Jaw Length Weight
7,500 lbs. (3,400 kg) Maximum Safe Load
1685-20 Messenger, EHS, Coated 0.157" to 0.875" (3.98 to 22.22 mm) — • — Round - Serrated 2.5" (6.4 cm) 2.6 lb (1.2 kg)
1685-31 Messenger, EHS, Guy Strand 0.625" to 1.250" (15.87 to 31.75 mm) • • — Round - Serrated 4.5" (11.4 cm) 4.8 lb (2.2 kg)
Voice/Data/Video Accessories
Accessories
Grip-Cleaning Brush Set
Test and Measurement • Set of four wire-bristle brushes designed for cleaning Klein wire and cable-pulling grips
•
Brushes have stiff wire bristles
•
Includes round and square shapes in both 12" and 14" (30.5 cm and 35.6 cm) lengths
for efficient cleaning of different jaw configurations
• Semi-flexible steel shafts set into comfortable wooden handles provide the necessary
reach into grip jaws
nt
Power Tools and Accessories 1-9/16" 1-9/16" 3/8" 3/8" Cat. No. Weight 25450
25450
1.0 lb (0.5 kg)
Lifting, Pulling, Lifting, Pulling, & Structural and Structural 304 www.kleintools.com > 800-553-4676 See Wire Pulling Grips warnings on page 290
