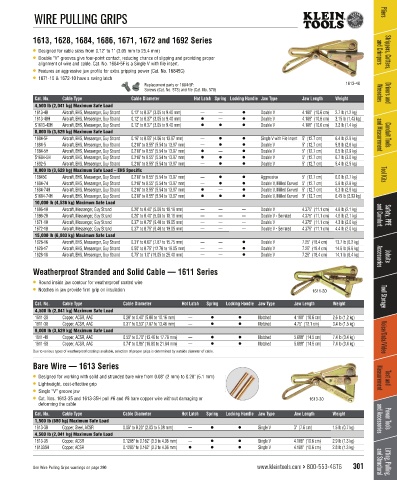

Page 303 - 凯能全英文KleinTools Catalog 167

WIRE PULLING GRIPS Pliers

1613, 1628, 1684, 1686, 1671, 1672 and 1692 Series
• Designed for cable sizes from 0.12" to 1" (3.05 mm to 25.4 mm) and Crimpers Strippers, Cutters,
• Double “V” grooves give four-point contact, reducing chance of slipping and providing proper
alignment of wire and cable. Cat. No. 1684-5F is a Single V with file insert.
• Features an aggressive jaw profile for extra gripping power (Cat. No. 16845C)
• 1671-10 & 1672-10 have a swing latch
1613-40
Replacement parts or 1684-5F:
Screws (Cat. No. 573) and file (Cat. No. 578) Wrenches Drivers and
Cat. No. Cable Type Cable Diameter Hot Latch Spring Locking Handle Jaw Type Jaw Length Weight
4,500 lb (2,041 kg) Maximum Safe Load
1613-40 Aircraft, EHS, Messenger, Guy Strand 0.12" to 0.37" (3.05 to 9.40 mm) — — • Double V 4.188" (10.6 cm) 2.7 lb (1.2 kg)
1613-40H Aircraft, EHS, Messenger, Guy Strand 0.12" to 0.37" (3.05 to 9.40 mm) • — • Double V 4.188" (10.6 cm) 3.15 lb (1.43 kg)
S1613-40H Aircraft, EHS, Messenger, Guy Strand 0.12" to 0.37" (3.05 to 9.40 mm) • • • Double V 4.188" (10.6 cm) 3.2 lb (1.4 kg)
8,000 lb (3,629 kg) Maximum Safe Load and Measurement Conduit Tools
1684-5F Aircraft, EHS, Messenger, Guy Strand 0.16" to 0.55" (4.06 to 13.97 mm) — • • Single V with File Insert 5" (12.7 cm) 6.4 lb (2.9 kg)
1684-5 Aircraft, EHS, Messenger, Guy Strand 0.218" to 0.55" (5.54 to 13.97 mm) — • • Double V 5" (12.7 cm) 5.8 lb (2.6 kg)
1684-5H Aircraft, EHS, Messenger, Guy Strand 0.218" to 0.55" (5.54 to 13.97 mm) • — • Double V 5" (12.7 cm) 6.5 lb (2.9 kg)
S1684-5H Aircraft, EHS, Messenger, Guy Strand 0.218" to 0.55" (5.54 to 13.97 mm) • • • Double V 5" (12.7 cm) 6.7 lb (3.0 kg)
1692-5 Aircraft, EHS, Messenger, Guy Strand 0.218" to 0.55" (5.54 to 13.97 mm) — • • Double V 5" (12.7 cm) 5.4 lb (2.5 kg)
8,000 lb (3,629 kg) Maximum Safe Load – EHS Specifi c
16845C Aircraft, EHS, Messenger, Guy Strand 0.218" to 0.55" (5.54 to 13.97 mm) — • • Aggressive 5" (12.7 cm) 6.0 lb (2.7 kg) Tool Kits
1684-74 Aircraft, EHS, Messenger, Guy Strand 0.218" to 0.55" (5.54 to 13.97 mm) — • • Double V, Milled Curved 5" (12.7 cm) 5.6 lb (2.6 kg)
1684-74H Aircraft, EHS, Messenger, Guy Strand 0.218" to 0.55" (5.54 to 13.97 mm) • — • Double V, Milled Curved 5" (12.7 cm) 6.3 lb (2.9 kg)
S1684-74H Aircraft, EHS, Messenger, Guy Strand 0.218" to 0.55" (5.54 to 13.97 mm) • • • Double V, Milled Curved 5" (12.7 cm) 6.45 lb (2.93 kg)
10,000 lb (4,536 kg) Maximum Safe Load
1686-10 Aircraft, Messenger, Guy Strand 0.20" to 0.40" (5.08 to 10.16 mm) — — — Double V 4.375" (11.1 cm) 4.6 lb (2.1 kg)
1686-20 Aircraft, Messenger, Guy Strand 0.20" to 0.40" (5.08 to 10.16 mm) — — — Double V - Serrated 4.375" (11.1 cm) 4.6 lb (2.1 kg) and Comfort Safety, PPE
1671-10 Aircraft, Messenger, Guy Strand 0.37" to 0.75" (9.40 to 19.05 mm) — — — Double V 4.375" (11.1 cm) 4.3 lb (2.0 kg)
1672-10 Aircraft, Messenger, Guy Strand 0.37" to 0.75" (9.40 to 19.05 mm) — — — Double V - Serrated 4.375" (11.1 cm) 4.4 lb (2.0 kg)
15,000 lb (6,803 kg) Maximum Safe Load
1628-16 Aircraft, EHS, Messenger, Guy Strand 0.31" to 0.62" (7.87 to 15.75 mm) — — • Double V 7.25" (18.4 cm) 13.7 lb (6.2 kg)
1628-17 Aircraft, EHS, Messenger, Guy Strand 0.50" to 0.75" (12.70 to 19.05 mm) — — • Double V 7.25" (18.4 cm) 14.6 lb (6.6 kg)
1628-18 Aircraft, EHS, Messenger, Guy Strand 0.75" to 1.0" (19.05 to 25.40 mm) — — • Double V 7.25" (18.4 cm) 14.1 lb (6.4 kg) Accessories Jobsite

Weatherproof Stranded and Solid Cable — 1611 Series
• Round inside jaw contour for weatherproof coated wire
• Notches in jaw provide firm grip on insulation 1611-30

Cat. No. Cable Type Cable Diameter Hot Latch Spring Locking Handle Jaw Type Jaw Length Weight Tool Storage
4,500 lb (2,041 kg) Maximum Safe Load
1611-20 Copper, ACSR, AAC 0.20" to 0.40" (5.08 to 10.16 mm) — • • Notched 4.188" (10.6 cm) 2.6 lb (1.2 kg)
1611-30 Copper, ACSR, AAC 0.31" to 0.53" (7.87 to 13.46 mm) — • • Notched 4.75" (12.1 cm) 3.4 lb (1.5 kg)
8,000 lb (3,629 kg) Maximum Safe Load
1611-40 Copper, ACSR, AAC 0.53" to 0.70" (13.46 to 17.78 mm) — • • Notched 5.688" (14.5 cm) 7.4 lb (3.4 kg) Voice/Data/Video
1611-50 Copper, ACSR, AAC 0.74" to 0.86" (18.80 to 21.84 mm) — • • Notched 5.688" (14.5 cm) 7.4 lb (3.4 kg)
Due to various types of weatherproof coatings available, selection of proper grips is determined by outside diameter of cable.

Bare Wire — 1613 Series
• Designed for working with solid and stranded bare wire from 0.08" (2 mm) to 0.20" (5.1 mm) Measurement Test and
• Lightweight, cost-effective grip
• Single “V” groove jaw
• Cat. Nos. 1613-35 and 1613-35H pull #6 and #8 bare copper wire without damaging or 1613-30
deforming the cable
Cat. No. Cable Type Cable Diameter Hot Latch Spring Locking Handle Jaw Type Jaw Length Weight
1,500 lb (680 kg) Maximum Safe Load and Accessories Power Tools
1613-30 Copper, Steel, ACSR 0.08" to 0.20" (2.03 to 5.08 mm) — • • Single V 3" (7.6 cm) 1.5 lb (0.7 kg)
4,500 lb (2,041 kg) Maximum Safe Load
1613-35 Copper, ACSR 0.1285" to 0.162" (3.3 to 4.06 mm) — • • Single V 4.188" (10.6 cm) 2.9 lb (1.3 kg)
161335H Copper, ACSR 0.1285" to 0.162" (3.3 to 4.06 mm) • • • Single V 4.188" (10.6 cm) 2.8 lb (1.3 kg) & Structural Lifting, Pulling,

> 800-553-4676 301 and Structural Lifting, Pulling,
See Wire Pulling Grips warnings on page 290
