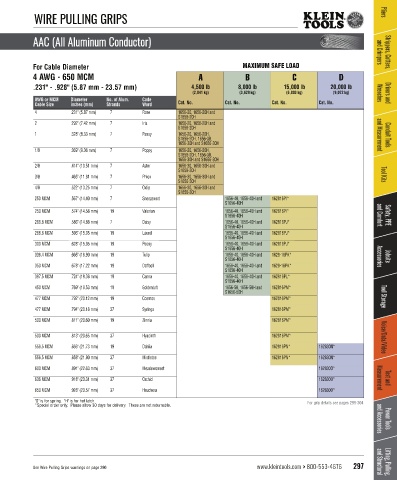

WIRE PULLING GRIPS Pliers

AAC (All Aluminum Conductor)
AAC (All Aluminum Conductor) and Crimpers Strippers, Cutters,

For Cable Diameter MAXIMUM SAFE LOAD
4 AWG - 650 MCM A B C D
.231" - .928" (5.87 mm - 23.57 mm) 4,500 lb 8,000 lb 15,000 lb 20,000 lb
(2,041 kg) (3,629 kg) (6,803 kg) (9,072 kg) Wrenches Drivers and
AWG or MCM Diameter No. of Alum. Code
Cable Size inches (mm) Strands Word Cat. No. Cat. No. Cat. No. Cat. No.
4 .231" (5.87 mm) 7 Rose 1656-20, 1656-20H and
S1656-20H
2 .292" (7.42 mm) 7 Iris 1656-20, 1656-20H and
S1656-20H
1 .328" (8.33 mm) 7 Pansy 1656-20, 1656-20H, and Measurement Conduit Tools
S1656-20H, 1656-30,
1656-30H and S1656-30H
1/0 .369" (9.36 mm) 7 Poppy 1656-20, 1656-20H,
S1656-20H, 1656-30,
1656-30H and S1656-30H
2/0 .414" (10.51 mm) 7 Aster 1656-30, 1656-30H and
S1656-30H
3/0 .465" (11.81 mm) 7 Phlox 1656-30, 1656-30H and Tool Kits
S1656-30H
4/0 .522" (13.25 mm) 7 Oxlip 1656-30, 1656-30H and
S1656-30H
250 MCM .567" (14.40 mm) 7 Sneezewort 1656-40, 1656-40H and 162816PI*
S1656-40H
250 MCM .574" (14.58 mm) 19 Valerian 1656-40, 1656-40H and 162816PI*
S1656-40H and Comfort Safety, PPE
266.8 MCM .586" (14.88 mm) 7 Daisy 1656-40, 1656-40H and 162816PJ*
S1656-40H
266.8 MCM .593" (15.05 mm) 19 Laurel 1656-40, 1656-40H and 162816PJ*
S1656-40H
300 MCM .628" (15.95 mm) 19 Peony 1656-40, 1656-40H and 162816PJ*
S1656-40H
336.4 MCM .665" (16.90 mm) 19 Tulip 1656-40, 1656-40H and 1628-16PK* Accessories Jobsite
S1656-40H
350 MCM .678" (17.22 mm) 19 Daffodil 1656-40, 1656-40H and 1628-16PK*
S1656-40H
397.5 MCM .724" (18.38 mm) 19 Canna 1656-40, 1656-40H and 162816PL*
S1656-40H
450 MCM .769" (19.53 mm) 19 Goldentuft 1656-50, 1656-50H and 162816PM*
S1656-50H
477 MCM .792" (20.12 mm) 19 Cosmos 162816PM* Tool Storage

477 MCM .794" (20.18 mm) 37 Syringa 162816PM*
500 MCM .811" (20.60 mm) 19 Zinnia 162816PM*

500 MCM .813" (20.65 mm) 37 Hyacinth 162816PM* Voice/Data/Video
556.5 MCM .856" (21.73 mm) 19 Dahlia 162816PN* 162830N*
556.5 MCM .858" (21.80 mm) 37 Mistletoe 162816PN* 162830N*

600 MCM .891" (22.63 mm) 37 Meadowsweet 162830O*
636 MCM .918" (23.31 mm) 37 Orchid 162830O* Measurement Test and
650 MCM .928" (23.57 mm) 37 Heuchera 162830O*
"S" is for spring. "H" is for hot latch. For grip details see pages 299-304
*Special order only. Please allow 30 days for delivery. These are not returnable. and Accessories Power Tools

& Structural
www.kleintools.com > 800-553-4676 297 and Structural Lifting, Pulling,
Lifting, Pulling,
See Wire Pulling Grips warnings on page 290
