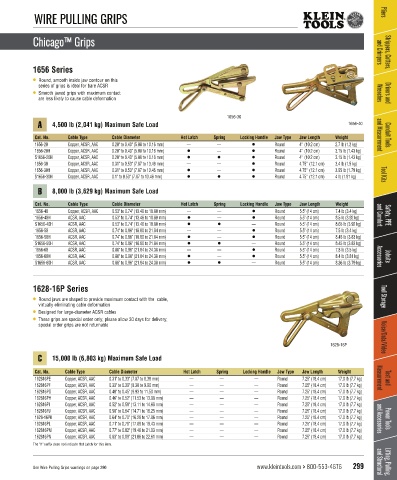

Page 301 - 凯能全英文KleinTools Catalog 167
P. 301
WIRE PULLING GRIPS Pliers
Chicago™ Grips and Crimpers Strippers, Cutters,
Chicago™ Grips
1656 Series
• Round, smooth inside jaw contour on this
series of grips is ideal for bare ACSR
• Smooth jawed grips with maximum contact Wrenches Drivers and
are less likely to cause cable deformation
1656-30
A 4,500 lb (2,041 kg) Maximum Safe Load 1656-40
Cat. No. Cable Type Cable Diameter Hot Latch Spring Locking Handle Jaw Type Jaw Length Weight and Measurement Conduit Tools
1656-20 Copper, ACSR, AAC 0.20" to 0.40" (5.08 to 10.16 mm) — — • Round 4" (10.2 cm) 2.7 lb (1.2 kg)
1656-20H Copper, ACSR, AAC 0.20" to 0.40" (5.08 to 10.16 mm) • — • Round 4" (10.2 cm) 3.15 lb (1.43 kg)
S1656-20H Copper, ACSR, AAC 0.20" to 0.40" (5.08 to 10.16 mm) • • • Round 4" (10.2 cm) 3.15 lb (1.43 kg)
1656-30 Copper, ACSR, AAC 0.31" to 0.53" (7.87 to 13.46 mm) — — • Round 4.75" (12.1 cm) 3.4 lb (1.5 kg)
1656-30H Copper, ACSR, AAC 0.31" to 0.53" (7.87 to 13.46 mm) • — • Round 4.75" (12.1 cm) 3.95 lb (1.79 kg)
S1656-30H Copper, ACSR, AAC 0.1" to 0.53" (7.87 to 13.46 mm) • • • Round 4.75" (12.1 cm) 4 lb (1.81 kg) Tool Kits
B 8,000 lb (3,629 kg) Maximum Safe Load
Cat. No. Cable Type Cable Diameter Hot Latch Spring Locking Handle Jaw Type Jaw Length Weight
1656-40 Copper, ACSR, AAC 0.53" to 0.74" (13.46 to 18.80 mm) — — • Round 5.5" (14 cm) 7.4 lb (3.4 kg)
1656-40H ACSR, AAC 0.53" to 0.74" (13.46 to 18.80 mm) • — • Round 5.5" (14 cm) 8.5 lb (3.92 kg) and Comfort Safety, PPE
S1656-40H ACSR, AAC 0.53" to 0.74" (13.46 to 18.80 mm) • • — Round 5.5" (14 cm) 8.65 lb (3.92 kg)
1656-50 ACSR, AAC 0.74" to 0.86" (18.80 to 21.84 mm) — — • Round 5.5" (14 cm) 7.5 lb (3.4 kg)
1656-50H ACSR, AAC 0.74" to 0.86" (18.80 to 21.84 mm) • — • Round 5.5" (14 cm) 8.45 lb (3.83 kg)
S1656-50H ACSR, AAC 0.74" to 0.86" (18.80 to 21.84 mm) • • — Round 5.5" (14 cm) 8.45 lb (3.83 kg)
1656-60 ACSR, AAC 0.86" to 0.96" (21.84 to 24.38 mm) — — • Round 5.5" (14 cm) 7.8 lb (3.5 kg)
1656-60H ACSR, AAC 0.86" to 0.96" (21.84 to 24.38 mm) • — • Round 5.5" (14 cm) 8.4 lb (3.81 kg) Accessories Jobsite
S1656-60H ACSR, AAC 0.86" to 0.96" (21.84 to 24.38 mm) • • — Round 5.5" (14 cm) 8.36 lb (3.79 kg)
1628-16P Series
• Round jaws are shaped to provide maximum contact with the cable, Tool Storage
virtually eliminating cable deformation
• Designed for large-diameter ACSR cables
• These grips are special order only; please allow 30 days for delivery;
special order grips are not returnable
1628-16P Voice/Data/Video
C 15,000 lb (6,803 kg) Maximum Safe Load
Cat. No. Cable Type Cable Diameter Hot Latch Spring Locking Handle Jaw Type Jaw Length Weight
162816PE Copper, ACSR, AAC 0.31" to 0.33" (7.87 to 8.38 mm) — — — Round 7.25" (18.4 cm) 17.0 lb (7.7 kg) Measurement Test and
162816PF Copper, ACSR, AAC 0.33" to 0.39" (8.38 to 9.90 mm) — — — Round 7.25" (18.4 cm) 17.0 lb (7.7 kg)
162816PG Copper, ACSR, AAC 0.40" to 0.45" (9.93 to 11.50 mm) — — — Round 7.25" (18.4 cm) 17.0 lb (7.7 kg)
162816PH Copper, ACSR, AAC 0.46" to 0.52" (11.53 to 13.08 mm) — — — Round 7.25" (18.4 cm) 17.0 lb (7.7 kg)
162816PI Copper, ACSR, AAC 0.52" to 0.58" (13.11 to 14.68 mm) — — — Round 7.25" (18.4 cm) 17.0 lb (7.7 kg)
162816PJ Copper, ACSR, AAC 0.58" to 0.64" (14.71 to 16.25 mm) — — — Round 7.25" (18.4 cm) 17.0 lb (7.7 kg)
1628-16PK Copper, ACSR, AAC 0.64" to 0.70" (16.28 to 17.86 mm) — — — Round 7.25" (18.4 cm) 17.0 lb (7.7 kg) and Accessories Power Tools
162816PL Copper, ACSR, AAC 0.71" to 0.76" (17.89 to 19.43 mm) — — — Round 7.25" (18.4 cm) 17.0 lb (7.7 kg)
162816PM Copper, ACSR, AAC 0.77" to 0.82" (19.46 to 21.03 mm) — — — Round 7.25" (18.4 cm) 17.0 lb (7.7 kg)
162816PN Copper, ACSR, AAC 0.83" to 0.89" (21.06 to 22.61 mm) — — — Round 7.25" (18.4 cm) 17.0 lb (7.7 kg)
The "H" suffix does not indicate Hot Latch for this item. & Structural Lifting, Pulling,
www.kleintools.com > 800-553-4676 299 and Structural Lifting, Pulling,
See Wire Pulling Grips warnings on page 290
