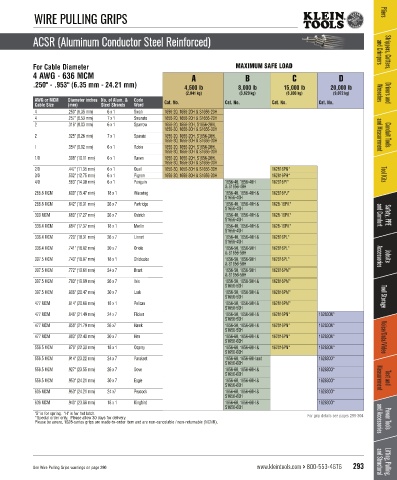

WIRE PULLING GRIPS Pliers

ACSR (Aluminum Conductor Steel Reinforced)
ACSR (Aluminum Conductor Steel Reinforced) and Crimpers Strippers, Cutters,

For Cable Diameter MAXIMUM SAFE LOAD
4 AWG - 636 MCM A B C D
.250" - .953" (6.35 mm - 24.21 mm) 4,500 lb 8,000 lb 15,000 lb 20,000 lb
(2,041 kg) (3,629 kg) (6,803 kg) (9,072 kg) Wrenches Drivers and
AWG or MCM Diameter inches No. of Alum. & Code Cat. No. Cat. No. Cat. No. Cat. No.
Cable Size (mm) Steel Strands Word
4 .250" (6.35 mm) 6 x 1 Swan 1656-20, 1656-20H & S1656-20H
4 .257" (6.53 mm) 7 x 1 Swanate 1656-20, 1656-20H & S1656-20H
2 .316" (8.03 mm) 6 x 1 Sparrow 1656-20, 1656-20H, S1656-20H,
1656-30, 1656-30H & S1656-30H
2 .325" (8.26 mm) 7 x 1 Sparate 1656-20, 1656-20H, S1656-20H, and Measurement Conduit Tools
1656-30, 1656-30H & S1656-30H
I .354" (9.02 mm) 6 x 1 Robin 1656-20, 1656-20H, S1656-20H,
1656-30, 1656-30H & S1656-30H
1/0 .398" (10.11 mm) 6 x 1 Raven 1656-20, 1656-20H, S1656-20H,
1656-30, 1656-30H & S1656-30H
2/0 .447" (11.35 mm) 6 x 1 Quail 1656-30, 1656-30H & S1656-30H 162816PG*
3/0 .502" (12.75 mm) 6 x 1 Pigeon 1656-30, 1656-30H & S1656-30H 162816PH* Tool Kits
4/0 .563" (14.30 mm) 6 x 1 Penguin 1656-40, 1656-40H 162816PI*
& S1656-40H
266.8 MCM .609" (15.47 mm) 18 x 1 Waxwing 1656-40, 1656-40H & 162816PJ*
S1656-40H
266.8 MCM .642" (16.31 mm) 26 x 7 Partridge 1656-40, 1656-40H & 1628-16PK*
S1656-40H
300 MCM .680" (17.27 mm) 26 x 7 Ostrich 1656-40, 1656-40H & 1628-16PK* and Comfort Safety, PPE
S1656-40H
336.4 MCM .684" (17.37 mm) 18 x 1 Merlin 1656-40, 1656-40H & 1628-16PK*
S1656-40H
336.4 MCM .720" (18.31 mm) 26 x 7 Linnet 1656-40, 1656-40H & 162816PL*
S1656-40H
336.4 MCM .741" (18.82 mm) 30 x 7 Oriole 1656-50, 1656-50H 162816PL*
& S1656-50H
397.5 MCM .743" (18.87 mm) 18 x 1 Chickadee 1656-50, 1656-50H 162816PL* Accessories Jobsite
& S1656-50H
397.5 MCM .772" (19.61 mm) 24 x 7 Brant 1656-50, 1656-50H 162816PM*
& S1656-50H
397.5 MCM .783" (19.89 mm) 26 x 7 Ibis 1656-50, 1656-50H & 162816PM*
S1656-50H
397.5 MCM .806" (20.47 mm) 30 x 7 Lark 1656-50, 1656-50H & 162816PM*
S1656-50H Tool Storage
477 MCM .814" (20.68 mm) 18 x 1 Pelican 1656-50, 1656-50H & 162816PM*
S1656-50H
477 MCM .846" (21.49 mm) 24 x 7 Flicker 1656-50, 1656-50H & 162816PN* 162830N*
S1656-50H
477 MCM .858" (21.79 mm) 26 x7 Hawk 1656-50, 1656-50H & 162816PN* 162830N*
S1656-50H
477 MCM .883" (22.43 mm) 30 x 7 Hen 1656-60, 1656-60H & 162816PN* 162830N* Voice/Data/Video
S1656-60H
556.5 MCM .879" (22.33 mm) 18 x 1 Osprey 1656-60, 1656-60H & 162816PN* 162830N*
S1656-60H
556.5 MCM .914" (23.22 mm) 24 x 7 Parakeet 1656-60, 1656-60H and 162830O*
S1656-60H
556.5 MCM .927" (23.55 mm) 26 x 7 Dove 1656-60, 1656-60H & 162830O*
S1656-60H
556.5 MCM .953" (24.21 mm) 30 x 7 Eagle 1656-60, 1656-60H & 162830O* Measurement Test and
S1656-60H
605 MCM .953" (24.21 mm) 24 x7 Peacock 1656-60, 1656-60H & 162830O*
S1656-60H
636 MCM .940" (23.88 mm) 18 x 1 Kingbird 1656-60, 1656-60H & 162830O*
S1656-60H
"S" is for spring. "H" is for hot latch. For grip details see pages 299-304
*Special order only. Please allow 30 days for delivery. and Accessories Power Tools
Please be aware, 1628-series grips are made-to-order item and are non-cancelable / non-returnable (NCNR).

& Structural
www.kleintools.com > 800-553-4676 293 and Structural Lifting, Pulling,
Lifting, Pulling,
See Wire Pulling Grips warnings on page 290
