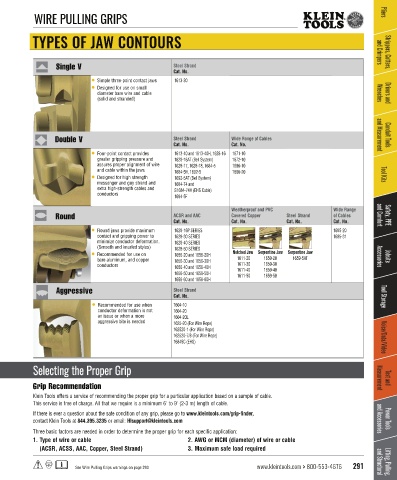

Page 293 - 凯能全英文KleinTools Catalog 167

WIRE PULLING GRIPS Pliers

TYPES OF JAW CONTOURS and Crimpers Strippers, Cutters,

Single V Steel Strand
Cat. No.
• Simple three-point contact jaws 1613-30
• Designed for use on small
diameter bare wire and cable Wrenches Drivers and
(solid and stranded)

Double V Steel Strand Wide Range of Cables and Measurement Conduit Tools
Cat. No. Cat. No.
• Four-point contact provides 1613-40 and 1613-40H, 1628-16 1671-10
greater gripping pressure and 1628-16AT (Bell System) 1672-10
assures proper alignment of wire 1628-17, 1628-18, 1684-5 1686-10
and cable within the jaws 1684-5H, 1692-5 1686-20
• Designed for high strength 1692-5AT (Bell System) Tool Kits
messenger and guy strand and 1684-74 and
extra high-strength cables and S1684-74H (EHS Cable)
conductors
1684-5F
Weatherproof and PVC Wide Range
Round ACSR and AAC Covered Copper Steel Strand of Cables and Comfort Safety, PPE
Cat. No. Cat. No. Cat. No. Cat. No.
• Round jaws provide maximum 1628-16P SERIES 1685-20
contact and gripping power to 1628-30 SERIES 1685-31
minimize conductor deformation. 1628-40 SERIES
(Smooth and knurled styles) 1628-50 SERIES
• Recommended for use on 1656-20 and 1656-20H Notched Jaw Serpentine Jaw Serpentine Jaw Accessories Jobsite
bare aluminum, and copper 1656-30 and 1656-30H 1611-20 1659-20 1659-5AT
conductors 1656-40 and 1656-40H 1611-30 1659-30
1656-50 and 1656-50H 1611-40 1659-40
1611-50 1659-50
1656-60 and 1656-60H
Aggressive Steel Strand
Cat. No. Tool Storage
• Recommended for use when 1604-10
conductor deformation is not 1604-20
an issue or when a more 1604-20L
aggressive bite is needed 1625-20 (For Wire Rope)
162520-1 (For Wire Rope)
162520-7/8 (For Wire Rope) Voice/Data/Video
16845C (EHS)

Selecting the Proper Grip
Selecting the Proper Grip

Grip Recommendation Measurement Test and
Klein Tools offers a service of recommending the proper grip for a particular application based on a sample of cable.
This service is free of charge. All that we require is a minimum 6' to 9' (2-3 m) length of cable.
If there is ever a question about the safe condition of any grip, please go to www.kleintools.com/grip-finder,
contact Klein Tools at 844.395.3235 or email: HIsupport@kleintools.com and Accessories Power Tools

Three basic factors are needed in order to determine the proper grip for each specific application:
1. Type of wire or cable 2. AWG or MCM (diameter) of wire or cable
(ACSR, ACSS, AAC, Copper, Steel Strand) 3. Maximum safe load required & Structural Lifting, Pulling,

www.kleintools.com > 800-553-4676 291 and Structural Lifting, Pulling,
See Wire Pulling Grips warnings on page 290
