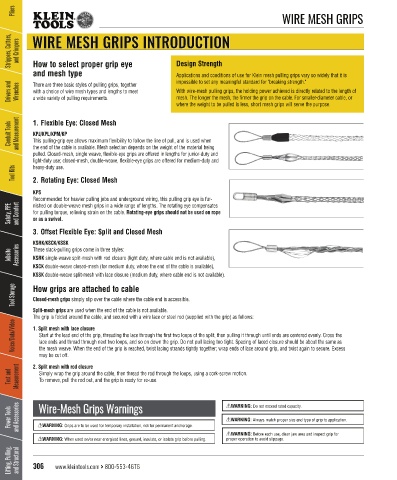

WIRE MESH GRIPS

WIRE MESH GRIPS INTRODUCTION
Strippers, Cutters, and Crimpers WIRE MESH GRIPS INTRODUCTION

How to select proper grip eye
and mesh type Design Strength
Applications and conditions of use for Klein mesh pulling grips vary so widely that it is
impossible to set any meaningful standard for "breaking strength."
Drivers and Wrenches There are three basic styles of pulling grips, together With wire-mesh pulling grips, the holding power achieved is directly related to the length of
with a choice of wire mesh types and lengths to meet
mesh. The longer the mesh, the firmer the grip on the cable. For smaller-diameter cable, or
a wide variety of pulling requirements.
where the weight to be pulled is less, short mesh grips will serve the purpose.

Conduit Tools and Measurement 1. Flexible Eye: Closed Mesh
KPJ/KPL/KPM/KP
This pulling-grip eye allows maximum flexibility to follow the line of pull, and is used when
the end of the cable is available. Mesh selection depends on the weight of the material being
pulled. Closed-mesh, single weave, flexible-eye grips are offered in lengths for junior-duty and
light-duty use; closed-mesh, double-weave, flexible-eye grips are offered for medium-duty and
Tool Kits heavy-duty use.
2. Rotating Eye: Closed Mesh

KPS
Recommended for heavier pulling jobs and underground wiring, this pulling grip eye is fur-
Safety, PPE and Comfort for pulling torque, relieving strain on the cable. Rotating-eye grips should not be used on rope
nished on double-weave mesh grips in a wide range of lengths. The rotating eye compensates
or as a swivel.

3. Offset Flexible Eye: Split and Closed Mesh
KSRK/KSCK/KSSK
Jobsite Accessories These slack-pulling grips come in three styles:
KSRK single-weave split-mesh with rod closure (light duty, where cable end is not available),
KSCK double-weave closed-mesh (for medium duty, where the end of the cable is available),
KSSK double-weave split-mesh with lace closure (medium duty, where cable end is not available).
Tool Storage How grips are attached to cable

Closed-mesh grips simply slip over the cable where the cable end is accessible.
Split-mesh grips are used when the end of the cable is not available.
The grip is folded around the cable, and secured with a wire lace or steel rod (supplied with the grip) as follows:
Voice/Data/Video 1. Split mesh with lace closure

Start at the lead end of the grip, threading the lace through the first two loops of the split, then pulling it through until ends are centered evenly. Cross the
lace ends and thread through next two loops, and so on down the grip. Do not pull lacing too tight. Spacing of laced closure should be about the same as
the mesh weave. When the end of the grip is reached, twist lacing strands tightly together; wrap ends of lace around grip, and twist again to secure. Excess
may be cut off.

Test and Measurement 2. Split mesh with rod closure
Simply wrap the grip around the cable, then thread the rod through the loops, using a cork-screw motion.
To remove, pull the rod out, and the grip is ready for re-use.

Wire-Mesh Grips Warnings
Power Tools and Accessories Wire-Mesh Grips Warnings WARNING: Do not exceed rated capacity.
WARNING: Always match proper size and type of grip to application.
WARNING: Grips are to be used for temporary installation, not for permanent anchorage.
WARNING: Before each use, clean jaw area and inspect grip for
proper operation to avoid slippage.
WARNING: When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
