WIRE MESH GRIPS Pliers

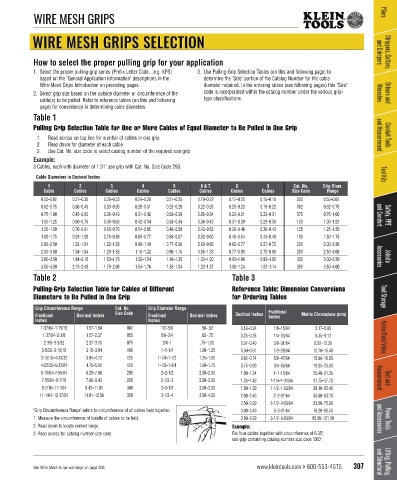

WIRE MESH GRIPS SELECTION
WIRE MESH GRIPS SELECTION

How to select the proper pulling grip for your application and Crimpers Strippers, Cutters,
1. Select the proper pulling-grip series (Prefix Letter Code…e.g. KPS) 3. Use Pulling-Grip Selection Tables (on this and following page) to
based on the "General Application Information" descriptions in the determine the "Size" portion of the Catalog Number for the cable
Wire-Mesh Grips Introduction on preceding pages. diameter required. In the ordering tables (see following pages) this "Size"
2. Select grip size based on the outside diameter or circumference of the code is incorporated within the catalog number under the various grip- Wrenches Drivers and
cable(s) to be pulled. Refer to reference tables (on this and following type classifications.
page) for convenience in determining cable diameters.
Table 1

Pulling Grip Selection Table for One or More Cables of Equal Diameter to Be Pulled in One Grip
1. Read across on top line for number of cables in one grip and Measurement Conduit Tools
2. Read down for diameter of each cable
3. Use Cat. No. size code to select catalog number of the required size grip
Example:
3 Cables, each with diameter of 1.31" use grip with Cat. No. Size Code 250.
Cable Diameters in Decimal Inches Tool Kits
1 2 3 4 5 6 & 7 8 9 Cat. No. Grip Diam.
Cable Cables Cables Cables Cables Cables Cables Cables Size Code Range
0.50–0.62 0.27–0.36 0.26–0.33 0.24–0.28 0.21–0.25 0.19–0.22 0.17–0.20 0.15–0.19 050 0.50–0.62
0.62–0.75 0.36–0.45 0.33–0.36 0.28–0.31 0.25–0.29 0.22–0.26 0.20–0.23 0.19–0.22 062 0.62–0.75
0.75–1.00 0.45–0.60 0.36–0.49 0.31–0.42 0.29–0.38 0.26–0.34 0.23–0.31 0.22–0.31 075 0.75–1.00 and Comfort Safety, PPE
1.00–1.25 0.60–0.76 0.49–0.63 0.42–0.54 0.38–0.48 0.34–0.43 0.31–0.39 0.29–0.36 100 1.00–1.25
1.25–1.50 0.76–0.91 0.63–0.76 0.54–0.65 0.48–0.58 0.43–0.52 0.39–0.46 0.36–0.43 125 1.25–1.50
1.50–1.75 0.91–1.08 0.76–0.89 0.65–0.77 0.58–0.67 0.52–0.60 0.46–0.54 0.43–0.49 150 1.50–1.75
2.00–2.50 1.23–1.54 1.02–1.28 0.88–1.10 0.77–0.96 0.69–0.86 0.62–0.77 0.57–0.72 200 2.00–2.50
2.50–3.00 1.54–1.84 1.28–1.53 1.10–1.32 0.96–1.16 0.86–1.03 0.77–0.93 0.72–0.86 250 2.50–3.00
3.00–3.50 1.84–2.15 1.53–1.79 1.32–1.54 1.16–1.35 1.03–1.20 0.93–1.08 0.86–1.00 300 3.00–3.50 Accessories Jobsite
3.50–4.00 2.15–2.45 1.79–2.05 1.54–1.76 1.35–1.54 1.20–1.37 1.08–1.24 1.00–1.14 350 3.50–4.00
Table 2 Table 3
Pulling-Grip Selection Table for Cables of Different Reference Table: Dimension Conversions
Diameters to Be Pulled in One Grip for Ordering Tables Tool Storage
Grip Circumference Range Cat. No. Grip Diameter Range
Size Code Decimal Inches Fractional Metric Dimensions (mm)
Fractional Decimal Inches Fractional Decimal Inches Inches
Inches Inches
1-37/64–1-15/16 1.57–1.94 062 1/2–5/8 .50–.62 0.12–0.24 1/8–15/64 3.17–5.95
1-37/64–2-3/8 1.57–2.37 050 5/8–3/4 .62–.75 0.25–0.36 1/4–23/64 6.35–9.13 Voice/Data/Video
2-3/8–3-5/32 2.37–3.15 075 3/4–1 .75–1.00 0.37–0.49 3/8–31/64 9.52–12.30
3-5/32–3-15/16 3.15–3.94 100 1–1-1/4 1.00–1.25 0.50–0.61 1/2–39/64 12.70–15.48
3-15/16–4-23/32 3.94–4.72 125 1-1/4–1-1/2 1.25–1.50 0.62–0.74 5/8–47/64 15.88–18.65
4-23/32–5-33/64 4.72–5.51 150 1-1/2–1-3/4 1.50–1.75 0.75–0.99 3/4–63/64 19.05–25.00
6-19/64–7-55/64 6.29–7.86 200 2–2-1/2 2.00–2.50 1.00–1.24 1–1-15/64 25.40–31.35
7-55/64–9-7/16 7.86–9.43 250 2-1/2–3 2.50–3.00 1.25–1.49 1-1/4–1-31/64 31.75–37.70 Measurement Test and
9-7/16–11-1/64 9.43–11.01 300 3–3-1/2 3.00–3.50 1.50–1.99 1-1/2–1-63/64 38.10–50.40
11-1/64–12-37/64 11.01–12.58 350 3-1/2–4 3.50–4.00 2.00–2.49 2–2-31/64 50.80–63.10
2.50–2.99 2-1/2–2-63/64 63.50–75.80
" Grip Circumference Range" refers to circumference of all cables held together. 3.00–3.49 3–3-31/64 76.20–88.50
1. Measure the circumference of bundle of cables to be held. 3.50–3.99 3-1/2–3-63/64 88.90–101.20 and Accessories Power Tools
2. Read down to locate correct range. Example:
3. Read across for catalog number size code. For four cables together with circumference of 6.35",
use grip containing catalog number size code "200". & Structural Lifting, Pulling,

www.kleintools.com > 800-553-4676 307 and Structural Lifting, Pulling,
See Wire Mesh Grips warnings on page 306
