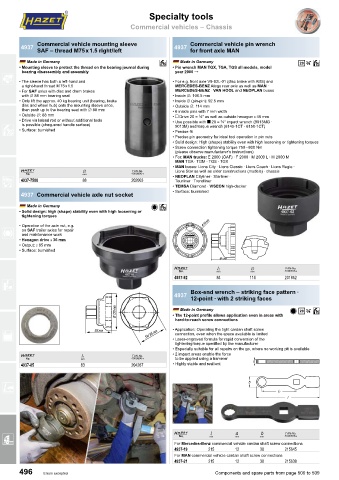

Page 498 - HAZET哈蔡特2024英文样本

Specialty tools Specialty tools

Commercial vehicles – Chassis Commercial vehicles – Chassis

4937 Commercial vehicle mounting sleeve 4937 Commercial vehicle pin wrench
SAF – thread M75 x 1.5 right/left for front axle MAN
Made in Germany F Made in Germany 9 F
• Mounting sleeve to protect the thread on the bearing journal during • Pin wrench MAN TGX, TGA, TGS all models, model
bearing disassembly and assembly year 2000 →
G • The sleeve has both a left-hand and • For e.g. front axle V9-82L-01 (disc brake with ABS) and
a right-hand thread M 75 x 1.5 MERCEDES-BENZ Atego rear axle as well as MAN ∙
• For SAF axles with disc and drum brakes MERCEDES-BENZ ∙ VAN HOOL and NEOPLAN buses
with x 88 mm bearing seat • Inside x: 100.5 mm
• Only lift the approx. 40 kg bearing unit (bearing, brake • Inside x (pin-pin): 92.5 mm
disc and wheel hub) onto the mounting sleeve once, • Outside x: 114 mm
then push up to the bearing seat with x 88 mm • 6 inside pins with 7 mm width
• Outside x: 88 mm • j Drive 20 = ⁄4″ as well as outside hexagon Ä 46 mm
3
• Drive via lateral rod or without additional tools • Use possible with i 20 = ⁄4″ impact wrench (9013MG ∙
3
is possible (chequered handle surface) 9013M) and torque wrench (6145-1CT ∙ 6150-1CT)
F • Surface: burnished • Precise fit
• Precise pin geometry for ideal tool operation in pin nuts
• Solid design: High (shape) stability even with high loosening or tightening torques
• Screw connection tightening torque 750 – 800 Nm
(please observe manufacturer‘s instructions)
• For: MAN trucks: E 2000 (ÖAF) ∙ F 2000 ∙ M 2000 L ∙ M 2000 M
MAN TGA ∙ TGM ∙ TGS ∙ TGX
• MAN buses: Lions City ∙ Lions Classic ∙ Lions Coach ∙ Lions Regio ∙
1 t 4 Lions Star as well as older constructions (models) ∙ chassis
D 4937-7588 88 202003 • NEOPLAN Cityliner ∙ Starliner ∙
Tourliner ∙ Trendliner
• TEMSA Diamond ∙ VISEON high-decker
• Surface: burnished
4937 Commercial vehicle axle nut socket
Made in Germany c F
• Solid design: high (shape) stability even with high loosening or
tightening torques
• Operation of the axle nut, e.g.
R on SAF trailer axles for repair
and maintenance work
• Hexagon drive Ä 36 mm
• Output: Ä 85 mm
• Surface: burnished

1 N t 4
4937-92 84 114 201952
C

4937 Box-end wrench – striking face pattern ∙
12-point ∙ with 2 striking faces
Made in Germany r9 F
• The 12-point profile allows application even in areas with
hard-to-reach screw connections
• Application: Operating the tight cardan shaft screw
O • Laser-engraved formula for rapid conversion of the
connection, even when the space available is limited
tightening torque specified by the manufacturer
• Especially suitable for all repairs on the go, where no working pit is available
1 N 4 • 2 impact areas enable the force
to be applied using a hammer
4937-85 83 204267 • Highly stable and resilient

A

1 4
K
1
5
U For Mercedes-Benz commercial vehicle cardan shaft screw connections
4937-19 215 12 30 215645
For MAN commercial vehicle cardan shaft screw connections
4937-21 215 12 30 215638
496 Errors excepted Components and spare parts from page 500 to 509
