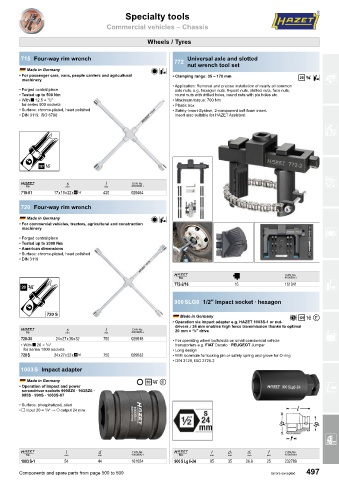

Page 499 - HAZET哈蔡特2024英文样本

Specialty tools

Commercial vehicles – Chassis

Wheels / Tyres

715 Four-way rim wrench Universal axle and slotted
772 nut wrench tool set
Made in Germany c C
• For passenger cars, vans, people carriers and agricultural • Clamping range: 35 – 170 mm
machinery 9 C G
• Application: Removal and precise installation of nearly all common
• Forged central piece axle nuts, e.g. hexagon nuts, 8-point nuts, slotted nuts, face nuts,
• Tested up to 500 Nm round nuts with drilled holes, round nuts with pin holes etc.
• With i 12.5 = /2″ • Maximum torque: 700 Nm
1
for series 900 sockets • Plastic box
• Surface: chrome-plated, head polished • Safety-Insert-System, 2-component soft foam insert.
• DIN 3119, ISO 6788 Insert also suitable for HAZET Assistent
F

1 S K 4 D

715-01 17 x 19 x 22 x 3 420 029464

720 Four-way rim wrench
Made in Germany c C
• For commercial vehicles, tractors, agricultural and construction
machinery R
• Forged central piece
• Tested up to 2000 Nm
• American dimensions
• Surface: chrome-plated, head polished
• DIN 3119

1 è 4
C
772-2/16 16 161041

900 SLG6 1/2″ Impact socket ∙ hexagon

720 S Made in Germany $ 8 /
• Operation via impact adapter e.g. HAZET 1003S-1 or nut-
drivers Ä 24 mm enables high force transmission thanks to optimal
1 S K 4 20 mm = /4″ drive
3
720-30 24 x 27 x 30 x 32 750 029518 • For operating wheel bolts/nuts on small commercial vehicle O
• With i 20 = /4″ transporters e.g. FIAT Ducato ∙ PEUGEOT Jumper
3
for series 1000 sockets • Long design
720 S 24 x 27 x 32 x 4 750 029532 • With borehole for locking pin or safety spring and grove for O-ring
• DIN 3129, ISO 2725-2
1003 S Impact adapter

Made in Germany b9 /
• Operation of impact and power A
screwdriver sockets 900SZ6 ∙ 903SZ6 ∙
985S ∙ 990S ∙ 1003S-07
• Surface: phosphatized, oiled
• j Input 20 = /4″ → h output 24 mm
3

U

1 K F 4 1 K G H c 4
1003 S-1 54 44 161034 900 S Lg 6-24 85 35 26.9 25 232789

Components and spare parts from page 500 to 509 Errors excepted 497
