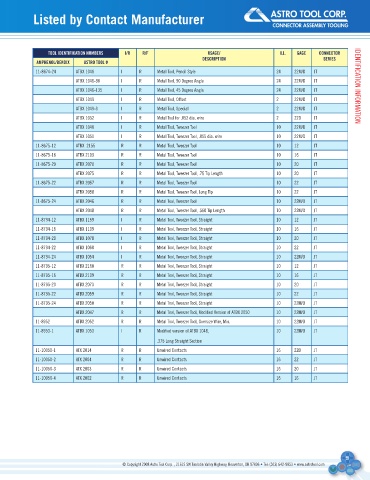

Insertion and Removal Tool Selection Charts Listed by Contact Manufacturer

TOOL IDENTIFICATION NUMBERS I/R R/F USAGE/ ILL. GAGE CONNECTOR
DESCRIPTION SERIES
AMPHENOL/BENDIX ASTRO TOOL #
11-8674-24 ATBX 1046 I R Metal Tool, Pencil Style 24 22M/d JT
ATBX 1046-90 I R Metal Tool, 90 degree Angle 24 22M/d JT
ATBX 1046-135 I R Metal Tool, 45 degree Angle 24 22M/d JT IdenTIFICATIOn InFORMATIOn
ATBX 1049 I R Metal Tool, Offset 2 22M/d JT
ATBX 1049-S I R Metal Tool, Special 2 22M/d JT
ATBX 1052 I R Metal Tool for .052 dia. wire 2 22d JT
ATBX 1048 I R Metal Tool, Tweezer Tool 10 22M/d JT
ATBX 1051 I R Metal Tool, Tweezer Tool, .055 dia. wire 10 22M/d JT
11-8675-12 ATBX 2155 R R Metal Tool, Tweezer Tool 10 12 JT
11-8675-16 ATBX 2103 R R Metal Tool, Tweezer Tool 10 16 JT
11-8675-20 ATBX 2070 R R Metal Tool, Tweezer Tool 10 20 JT
ATBX 2075 R R Metal Tool, Tweezer Tool, .75 Tip Length 10 20 JT
11-8675-22 ATBX 2057 R R Metal Tool, Tweezer Tool 10 22 JT
ATBX 2058 R R Metal Tool, Tweezer Tool, Long Tip 10 22 JT
11-8675-24 ATBX 2046 R R Metal Tool, Tweezer Tool 10 22M/d JT
ATBX 2048 R R Metal Tool, Tweezer Tool, .560 Tip Length 10 22M/d JT
11-8794-12 ATBX 1159 I R Metal Tool, Tweezer Tool, Straight 10 12 JT
11-8794-16 ATBX 1109 I R Metal Tool, Tweezer Tool, Straight 10 16 JT
11-8794-20 ATBX 1078 I R Metal Tool, Tweezer Tool, Straight 10 20 JT
11-8794-22 ATBX 1060 I R Metal Tool, Tweezer Tool, Straight 10 22 JT
11-8794-24 ATBX 1054 I R Metal Tool, Tweezer Tool, Straight 10 22M/d JT
11-8795-12 ATBX 2160 R R Metal Tool, Tweezer Tool, Straight 10 12 JT
11-8795-16 ATBX 2109 R R Metal Tool, Tweezer Tool, Straight 10 16 JT
11-8795-20 ATBX 2073 R R Metal Tool, Tweezer Tool, Straight 10 20 JT
11-8795-22 ATBX 2059 R R Metal Tool, Tweezer Tool, Straight 10 22 JT
11-8795-24 ATBX 2050 R R Metal Tool, Tweezer Tool, Straight 10 22M/d JT
ATBX 2047 R R Metal Tool, Tweezer Tool, Modified Version of ATBX 2050 10 22M/d JT
11-8952 ATBX 2052 R R Metal Tool, Tweezer Tool, Oversize Wire, Min. 10 22M/d JT
11-8953-1 ATBX 1053 I R Modified version of ATBX 1048, 10 22M/d JT
.375 Long Straight Section
11-10050-1 ATX 2014 R R Unwired Contacts 16 22d JT
11-10050-2 ATX 2004 R R Unwired Contacts 16 22 JT
11-10050-3 ATX 2003 R R Unwired Contacts 16 20 JT
11-10050-4 ATX 2002 R R Unwired Contacts 16 16 JT

55
