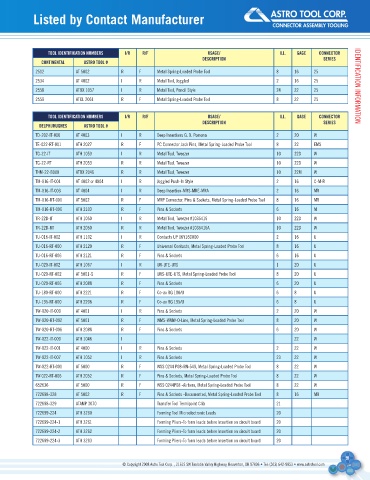

Insertion and Removal Tool Selection Charts Listed by Contact Manufacturer

TOOL IDENTIFICATION NUMBERS I/R R/F USAGE/ ILL. GAGE CONNECTOR
DESCRIPTION SERIES
CONTINENTAL ASTRO TOOL #
2512 AT 5002 R F Metal Spring-Loaded Probe Tool 8 16 25
2534 AT 4002 I R Metal Tool, Joggled 2 16 25
2558 ATBX 1057 I R Metal Tool, Pencil Style 24 22 25 IdenTIFICATIOn InFORMATIOn
2559 ATCL 2061 R F Metal Spring-Loaded Probe Tool 8 22 25

TOOL IDENTIFICATION NUMBERS I/R R/F USAGE/ ILL. GAGE CONNECTOR
DESCRIPTION SERIES
DELPHI/HUGHES ASTRO TOOL #
Td-202-IT-000 AT 4003 I R deep Insertions g. d. Pomona 2 20 W
Te-022-RT-001 ATH 2027 R F PC Connector Jack Pins, Metal Spring-Loaded Probe Tool 8 22 eMS
Tg-22-IT ATH 1053 I R Metal Tool, Tweezer 10 22d W
Tg-22-RT ATH 2053 R R Metal Tool, Tweezer 10 22d W
THM-22-B000 ATBX 2046 R R Metal Tool, Tweezer 10 22M W
TM-016-IT-001 AT 4002 or 4004 I R Joggled Push-In Style 2 16 C-M-R
TM-016-IT-003 AT 4004 I R deep Insertion-MRS-MRe-MRA 2 16 MR
TM-016-RT-001 AT 5002 R F MRP Connector, Pins & Sockets, Metal Spring-Loaded Probe Tool 8 16 MR
TM-016-RT-006 ATH 2103 R F Pins & Sockets 6 16 M
TR-22d-IT ATH 1050 I R Metal Tool, Tweezer #1035415 10 22d W
TR-22d-RT ATH 2050 R R Metal Tool, Tweezer #1035416A 10 22d W
TU-016-IT-002 ATH 1102 I R Contacts UP 16y16C000 2 16 U
TU-016-RT-000 ATH 2120 R F Universal Contacts, Metal Spring-Loaded Probe Tool 8 16 U
TU-016-RT-006 ATH 2121 R F Pins & Sockets 6 16 U
TU-020-IT-002 ATH 1067 I R UR-UTe-UTS 1 20 U
TU-020-RT-002 AT 5001-S R F URS-UTe-UTS, Metal Spring-Loaded Probe Tool 8 20 U
TU-020-RT-006 ATH 2088 R F Pins & Sockets 6 20 U
TU-180-RT-000 ATH 2221 R F Co-ax Rg 180/U 6 8 U
TU-195-RT-000 ATH 2206 R F Co-ax Rg 195/U 6 8 U
TW-020-IT-000 AT 4001 I R Pins & Sockets 2 20 W
TW-020-RT-002 AT 5001 R F WMS-WMW-O-Line, Metal Spring-Loaded Probe Tool 8 20 W
TW-020-RT-006 ATH 2088 R F Pins & Sockets 6 20 W
TW-022-IT-000 ATH 1046 I 22 W
TW-022-IT-001 AT 4000 I R Pins & Sockets 2 22 W
TW-022-IT-007 ATH 1052 I R Pins & Sockets 23 22 W
TW-022-RT-001 AT 5000 R F WSS 0244 P08-Rn-549, Metal Spring-Loaded Probe Tool 8 22 W
TW·022-RT-006 ATH 2052 R F Pins & Sockets, Metal Spring-Loaded Probe Tool 8 22 W
652636 AT 5000 R F WSS 0244P08 -Airborn, Metal Spring-Loaded Probe Tool 8 22 W
722698-328 AT 5002 R F Pins & Sockets -documented, Metal Spring-Loaded Probe Tool 8 16 MR
722698-329 ATAMP 3070 Transfer Tool Termipoint Clib 21
722699-224 ATH 3260 Forming Tool Microelectronic Leads 20
722699-224-1 ATH 3261 Forming Pliers-To form leads before Insertion on circuit board 20
722699-224-2 ATH 3262 Forming Pliers-To form leads before Insertion on circuit board 20
722699-224-3 ATH 3263 Forming Pliers-To form leads before Insertion on circuit board 20

59
