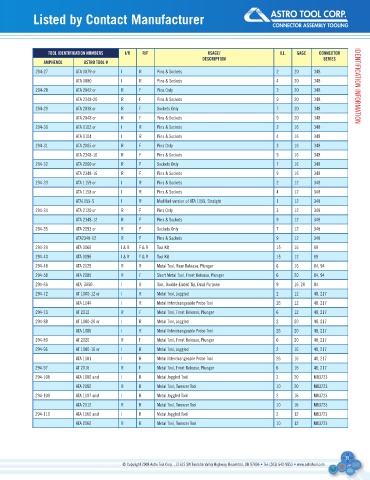

Page 52 - Astro-Catalog2020.11

Insertion and Removal Tool Selection Charts Listed by Contact Manufacturer

TOOL IDENTIFICATION NUMBERS I/R R/F USAGE/ ILL. GAGE CONNECTOR
DESCRIPTION SERIES
AMPHENOL ASTRO TOOL #
294-27 ATA 1079 or I R Pins & Sockets 2 20 348
ATA 1080 I R Pins & Sockets 4 20 348
294-28 ATA 2042 or R F Pins Only 3 20 348 IdenTIFICATIOn InFORMATIOn
ATA 2348-20 R F Pins & Sockets 9 20 348
294-29 ATA 2038 or R F Sockets Only 7 20 348
ATA 2048 or R F Pins & Sockets 9 20 348
294-30 ATA 1102 or I R Pins & Sockets 2 16 348
ATA 1104 I R Pins & Sockets 4 16 348
294-31 ATA 2065 or R F Pins Only 3 16 348
ATA 2348-16 R F Pins & Sockets 9 16 348
294-32 ATA 2060 or R F Sockets Only 7 16 348
ATA 2348-16 R F Pins & Sockets 9 16 348
294-33 ATA 1159 or I R Pins & Sockets 2 12 348
ATA 1158 or I R Pins & Sockets 4 12 348
ATA1159-S I R Modified version of ATA 1159, Straight 1 12 348
294-34 ATA 2120 or R F Pins Only 3 12 348
ATA 2348-12 R F Pins & Sockets 9 12 348
294-35 ATA 2093 or R F Sockets Only 7 12 348
ATA2348-12 R F Pins & Sockets 9 12 348
294-39 ATA 3069 I & R F & R Tool kit 15 16 69
294-40 ATA 3095 I & R F & R Tool kit 15 12 69
294-48 ATA 2125 R R Metal Tool, Rear Release, Plunger 6 16 84, 94
294-58 ATA 2085 R F Short Metal Tool, Front Release, Plunger 6 20 84, 94
294-66 ATA 3050 I R Tool, double-ended Tip, dual Purpose 9 16, 20 84
294-72 AT 1000-12 or I R Metal Tool, Joggled 2 12 48, 217
ATA 1144 I R Metal Interchangeable Probe Tool 26 12 48, 217
294-73 AT 2012 R F Metal Tool, Front Release, Plunger 6 12 48, 217
294-88 AT 1000-20 or I R Metal Tool, Joggled 2 20 48, 217
ATA 1086 I R Metal Interchangeable Probe Tool 26 20 48, 217
294-89 AT 2020 R F Metal Tool, Front Release, Plunger 6 20 48, 217
294-96 AT 1000-16 or I R Metal Tool, Joggled 2 16 48, 217
ATA 1101 I R Metal Interchangeable Probe Tool 26 16 48, 217
294-97 AT 2016 R F Metal Tool, Front Release, Plunger 6 16 48, 217
294-108 ATA 1080 and I R Metal Joggled Tool 2 20 M83723
ATA 2080 R R Metal Tool, Tweezer Tool 10 20 M83723
294-109 ATA 1107 and I R Metal Joggled Tool 2 16 M83723
ATA 2112 R R Metal Tool, Tweezer Tool 10 16 M83723
294-110 ATA 1160 and I R Metal Joggled Tool 2 12 M83723
ATA 2160 R R Metal Tool, Tweezer Tool 10 12 M83723

51
