Pin Locking and Releasing Methods

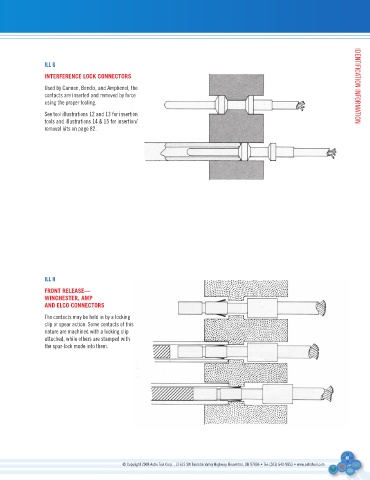

                ILL G
                INTERFERENCE LOCK CONNECTORS
                Used by Cannon, Bendix, and Amphenol, the                                                              IdenTIFICATIOn InFORMATIOn
                contacts are inserted and removed by force
                using the proper tooling.

                See tool illustrations 12 and 13 for insertion
                tools and illustrations 14 & 15 for insertion/
                removal kits on page 82.





























                ILL H
                FRONT RELEASE—
                WINCHESTER, AMP
                AND ELCO CONNECTORS

                The contacts may be held in by a locking
                clip or spear action. Some contacts of this
                nature are machined with a locking clip
                attached, while others are stamped with
                the spur-lock made into them.





















                                                                                                                   49
