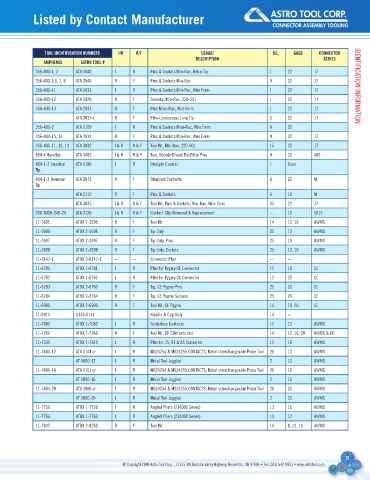

Insertion and Removal Tool Selection Charts Listed by Contact Manufacturer

TOOL IDENTIFICATION NUMBERS I/R R/F USAGE/ ILL. GAGE CONNECTOR
DESCRIPTION SERIES
AMPHENOL ASTRO TOOL #
356-400-1, 3 ATA 1040 I R Pins & Sockets Min-Rac, Relia-Tac 1 22 17
356-400-5,6, 7, 8 ATA 2040 R F Pins & Sockets Min-Rac 9 22 17
356-400-11 ATA 1033 I R Pins & Sockets Min-Rac, Wire Form 1 22 17 IdenTIFICATIOn InFORMATIOn
356-400-12 ATA 2029 R F Sockets, Min-Rac, 220-501 1 22 17
356-400-13 ATA 2033 R F Pins Minc-Rac, Wire Form 1 22 17
ATA 2033-L R F Pins-Librascope, Long Tip 1 22 17
356-400-2 ATA 1109 I R Pins & Sockets Mini-Rac, Wire Form 9 22
356-400-15, 14 ATA 2032 R F Pins & Sockets Min-Rac, Wire Form 9 22 17
356-400-11, 12, 13 ATA 3032 I & R R & F Tool kit, Min-Rac, 220-501 15 22 17
494-1 Handles ATA 3482 I & R R & F Tool, double-ended Tip-Filter Pins 9 20 482
494-1-2 Insertion ATA 1186 I R Straight Coaxial 1 Coax
Tip
494-1-3 Removal ATA 2073 R F Stamped Contacts 6 20 M
Tip
ATA 2112 R F Pins & Sockets 6 16 M
ATA 3035 I & R R & F Tool kit, Pins & Sockets, Min-Rac, Wire Form 15 22 17
200-4000-240-20 ATA 3120 I & R R & F Contact Clip Removal & Replacement -- 16 5015
11-3695 ATBX 2-3695 R F Tool kit 14 12, 16 An/MS
11-3696 ATBX 2-3696 R F Tip Only 25 12 An/MS
11-3697 ATBX 2-3697 R F Tip Only, Pins 25 16 An/MS
11-3698 ATBX 2-3698 R F Tip Only, Sockets 25 12, 16 An/MS
11-6147-1 ATBX 3-6147-1 -- -- Connector Plier -- --
11-6781 ATBX 1-6781 I R Plier for Pygmy Ce Connector 12 16 Ce
11-6782 ATBX 1-6782 I R Plier for Pygmy Ce Connector 12 20 Ce
11-6783 ATBX 2-6783 R F Tip, Ce Pygmy Pins 25 20 Ce
11-6784 ATBX 2-6784 R F Tip, Ce Pygmy Sockets 25 20 Ce
11-6900 ATBX 2-6900 R F Tool kit, Ce Pygmy 14 16, 20 Ce
11-6911 0148-0141 Handle & Cap Only 14 --
11-7082 ATBX 1-7082 I R Solderless Contacts 12 12 An/MS
11-7260 ATBX 2-7260 R F Tool kit, Ce COntacts incl. 14 12, 16, 20 An/MS & Ce
11-7345 ATBX 1-7345 I R Plier for 75, 81 & 85 Connector 12 16 An/MS
11-7401-12 ATA 1144 or I R MS24254 & MS24255 COnTACTS, Metal Interchangeable Probe Tool 26 12 An/MS
AT 1000-12 I R Metal Tool Joggled 2 12 An/MS
11-7401-16 ATA 1101 or I R MS24254 & MS24255 COnTACTS, Metal Interchangeable Probe Tool 26 16 An/MS
AT 1000-16 I R Metal Tool Joggled 2 16 An/MS
11-7401-20 ATA 1086 or I R MS24254 & MS24255 COnTACTS, Metal Interchangeable Probe Tool 26 20 An/MS
AT 1000-20 I R Metal Tool Joggled 2 20 An/MS
11-7736 ATBX 1-7736 I R Angled Pliers (214000 Series) 13 16 An/MS
11-7763 ATBX 1-7763 I R Angled Pliers (214000 Series) 13 12 An/MS
11-7837 ATBX 2-8250 R F Tool kit 14 8, 12, 16 An/MS

53
