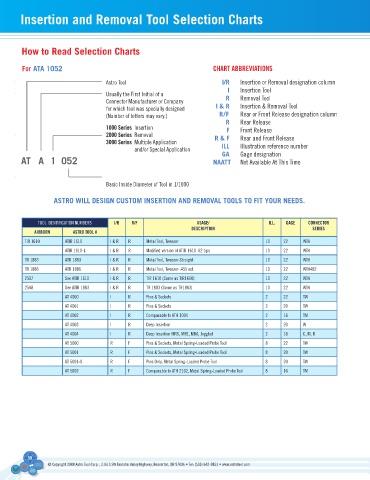

Page 51 - Astro-Catalog2020.11

Insertion and Removal Tool Selection Charts Listed by Contact Manufacturer

How to Read Selection Charts

For ATA 1052 CHART ABBREVIATIONS

Astro Tool I/R Insertion or Removal designation column
I Insertion Tool
Usually the First Initial of a
Connector Manufacturer or Company R Removal Tool
for which tool was specially designed I & R Insertion & Removal Tool
(number of letters may vary.) R/F Rear or Front Release designation column
R Rear Release
1000 Series Insertion F Front Release
2000 Series Removal R & F Rear and Front Release
3000 Series Multiple Application
and/or Special Application ILL Illustration reference number
gage designation
GA
AT A 1 052 NAATT not Available At This Time

Basic Inside diameter of Tool in 1/1000

ASTRO WILL DESIGN CuSTOM INSERTION AND REMOvAL TOOLS TO FIT yOuR NEEDS.

TOOL IdenTIFICATIOn nUMBeRS I/R R/F USAGE/ ILL. GAGE CONNECTOR
DESCRIPTION SERIES
AIRBORN ASTRO TOOL #
TIR 1610 ATIR 1610 I & R R Metal Tool, Tweezer 10 22 WTk
ATIR 1610-L I & R R Modified version of ATIR 1610 .62 tips 10 22 WTk
TR 1883 ATR 1883 I & R R Metal Tool, Tweezer-Straight 10 22 WTk
TR 1886 ATR 1886 I & R R Metal Tool, Tweezer-.455 ext. 10 22 WTk482
2597 See ATIR 1610 I & R R TIR 1610 (Same as TIR1610) 10 22 WTk
2598 See ATIR 1883 I & R R TR 1883 (Same as TR1883) 10 22 WTk
AT 4000 I R Pins & Sockets 2 22 TW
AT 4001 I R Pins & Sockets 2 20 TW
AT 4002 I R Comparable to ATH 1094 2 16 TM
AT 4003 I R deep Insertion 2 20 W
AT 4004 I R deep Insertion MRS, MRe, MRA, Joggled 2 16 C, M, R
AT 5000 R F Pins & Sockets, Metal Spring-Loaded Probe Tool 8 22 TW
AT 5001 R F Pins & Sockets, Metal Spring-Loaded Probe Tool 8 20 TW
AT 5001-S R F Pins Only, Metal Spring-Loaded Probe Tool 8 20 TW
AT 5002 R F Comparable to ATH 2102, Metal Spring-Loaded Probe Tool 8 16 TM
