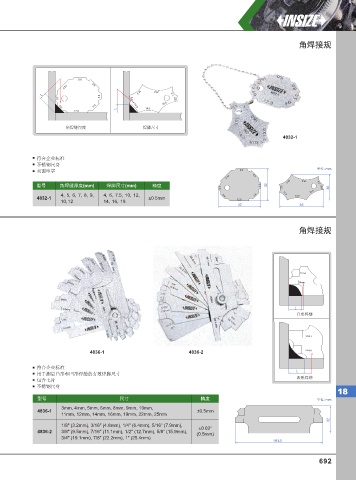

Page 701 - 英示测量INSIZE2025-v.66

角焊接规

9.0
8.0
10.0
L 12.0 18.0 7.5
5.0
4.0
4.0
6.0
16.0
7.0 10.0
6.0
L 14.0
12.0
角焊缝厚度 焊脚尺寸
4832-1

符合企业标准
不锈钢尺身
双面印字 9.0 单位: mm
8.0
10.0
7.5
18.0
型号 角焊缝厚度 (mm) 焊脚尺寸 (mm) 精度 4.0 5.0 32 6.0 4.0 30
12.0
16.0
4, 5, 6, 7, 8, 9, 4, 6, 7.5, 10, 12, 6.0 7.0 10.0 14.0
4832-1 ±0.5mm 12.0
10, 12 14, 16, 18
42 46
角焊接规

11mm
10mm

L
凸形焊缝

4836-1 4836-2 11mm 10mm

符合企业标准
L
用于测量凸形和凹形焊缝的有效焊脚尺寸
包含七片 凹形焊缝
不锈钢尺身
18
型号 尺寸 精度 单位: mm
3mm, 4mm, 5mm, 6mm, 8mm, 9mm, 10mm,
4836-1 ±0.5mm
11mm, 12mm, 14mm, 16mm, 19mm, 22mm, 25mm
32
1/8" (3.2mm), 3/16" (4.8mm), 1/4" (6.4mm), 5/16" (7.9mm),
±0.02"
4836-2 3/8" (9.5mm), 7/16" (11.1mm), 1/2" (12.7mm), 5/8" (15.9mm),
(0.5mm)
3/4" (19.1mm), 7/8" (22.2mm), 1" (25.4mm)
101.5
