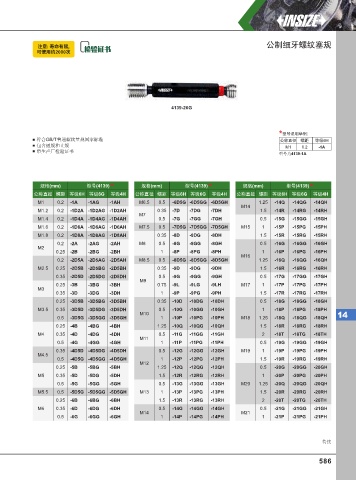

P. 595
注意: 寿命有限, 公制细牙螺纹塞规
可使⽤约2000次
4139-20G
* 型号说明举例:
符合GB/T普通螺纹量规国家标准 公称直径 螺距 等级6H
包含通规和止规 M1 0.2 -1A
带生产厂检验证书
型号为4139-1A
规格(mm) 型号(4139) * 规格(mm) 型号(4139) * 规格(mm) 型号(4139) *
公称直径 螺距 等级6H 等级6G 等级4H 公称直径 螺距 等级6H 等级6G 等级4H 公称直径 螺距 等级6H 等级6G 等级4H
M1 0.2 -1A -1AG -1AH M6.5 0.5 -6D5G -6D5GG -6D5GH 1.25 -14Q -14QG -14QH
M14
M1.2 0.2 -1D2A -1D2AG -1D2AH 0.35 -7D -7DG -7DH 1.5 -14R -14RG -14RH
M7
M1.4 0.2 -1D4A -1D4AG -1D4AH 0.5 -7G -7GG -7GH 0.5 -15G -15GG -15GH
M1.6 0.2 -1D6A -1D6AG -1D6AH M7.5 0.5 -7D5G -7D5GG -7D5GH M15 1 -15P -15PG -15PH
M1.8 0.2 -1D8A -1D8AG -1D8AH 0.35 -8D -8DG -8DH 1.5 -15R -15RG -15RH
0.2 -2A -2AG -2AH M8 0.5 -8G -8GG -8GH 0.5 -16G -16GG -16GH
M2
0.25 -2B -2BG -2BH 1 -8P -8PG -8PH 1 -16P -16PG -16PH
M16
0.2 -2D5A -2D5AG -2D5AH M8.5 0.5 -8D5G -8D5GG -8D5GH 1.25 -16Q -16QG -16QH
M2.5 0.25 -2D5B -2D5BG -2D5BH 0.35 -9D -9DG -9DH 1.5 -16R -16RG -16RH
0.35 -2D5D -2D5DG -2D5DH 0.5 -9G -9GG -9GH 0.5 -17G -17GG -17GH
M9
0.25 -3B -3BG -3BH 0.75 -9L -9LG -9LH M17 1 -17P -17PG -17PH
M3
0.35 -3D -3DG -3DH 1 -9P -9PG -9PH 1.5 -17R -17RG -17RH
0.25 -3D5B -3D5BG -3D5BH 0.35 -10D -10DG -10DH 0.5 -18G -18GG -18GH
M3.5 0.35 -3D5D -3D5DG -3D5DH 0.5 -10G -10GG -10GH 1 -18P -18PG -18PH
M10 14
0.5 -3D5G -3D5GG -3D5GH 1 -10P -10PG -10PH M18 1.25 -18Q -18QG -18QH
0.25 -4B -4BG -4BH 1.25 -10Q -10QG -10QH 1.5 -18R -18RG -18RH
M4 0.35 -4D -4DG -4DH 0.5 -11G -11GG -11GH 2 -18T -18TG -18TH
M11
0.5 -4G -4GG -4GH 1 -11P -11PG -11PH 0.5 -19G -19GG -19GH
0.35 -4D5D -4D5DG -4D5DH 0.5 -12G -12GG -12GH M19 1 -19P -19PG -19PH
M4.5
0.5 -4D5G -4D5GG -4D5GH 1 -12P -12PG -12PH 1.5 -19R -19RG -19RH
M12
0.25 -5B -5BG -5BH 1.25 -12Q -12QG -12QH 0.5 -20G -20GG -20GH
M5 0.35 -5D -5DG -5DH 1.5 -12R -12RG -12RH 1 -20P -20PG -20PH
0.5 -5G -5GG -5GH 0.5 -13G -13GG -13GH M20 1.25 -20Q -20QG -20QH
M5.5 0.5 -5D5G -5D5GG -5D5GH M13 1 -13P -13PG -13PH 1.5 -20R -20RG -20RH
0.25 -6B -6BG -6BH 1.5 -13R -13RG -13RH 2 -20T -20TG -20TH
M6 0.35 -6D -6DG -6DH 0.5 -14G -14GG -14GH 0.5 -21G -21GG -21GH
M14 M21
0.5 -6G -6GG -6GH 1 -14P -14PG -14PH 1 -21P -21PG -21PH
待续
