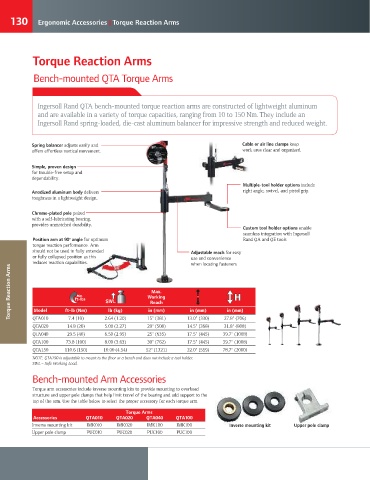

130 Ergonomic Accessories | Torque Reaction Arms

Torque Reaction Arms

üýþch-mounted QTA Torque Arms

Sets

Ingersoll Rand QTA bench-mounted torque reaction arms are constructed of lightweight aluminum
and are available in a variety of torque capacities, ranging from 10 to 150 Nm. They include an
Ingersoll Rand spring-loaded, die-cast aluminum balancer for impressive strength and reduced weight.

Spring balancer adjusts easily and Cable or air line clamps keep
offers effortless vertical movement. work area clear and organized.

Simple, proven design
for trouble-free setup and
dependability.
Multiple-tool holder options include
Anodized aluminum body delivers right angle, swivel, and pistol grip.
toughness in a lightweight design.

Chrome-plated pole paired
with a self-lubricating bearing,
provides unmatched durability.
Custom tool holder options enable
seamless integration with Ingersoll
o
Position arm at 90 angle for optimum Rand QA and QE tools
torque reaction performance. Arm
should not be used in fully extended Adjustable reach for easy
or fully collapsed position as this use and convenience
reduces reaction capabilities. when locating fasteners
Torque Reaction Arms Working

Max.
Reach

in (mm)
in (mm)
lb (kg)
Model
in (mm)
7.4 (10)
QTA010
20" (508)
5.00 (2.27)
14.8 (20)
14.5" (368)
31.8" (808)
QTA020 ft-lb (Nm) 2.64 (1.20) 15" (381) 13.0" (330) 27.8" (706)
QTA040 29.5 (40) 6.50 (2.95) 25" (635) 17.5" (445) 39.7" (1008)
QTA100 73.8 (100) 8.00 (3.63) 30" (762) 17.5" (445) 39.7" (1008)
QTA150 110.6 (150) 10.00 (4.54) 52" (1321) 22.0" (559) 78.7" (2000)
ÿ A150 is adjustable to mount to the loor or a bench and does not include a tool holder.
SWL = Safe Working Load.

Bench-mounted Arm Accessories
Torque arm accessories include inverse mounting kits to provide mounting to overhead
structure and upper pole clamps that help limit travel of the bearing and add support to the
top of the arm. Use the table below to select the proper accessory for each torque arm.

Torque Arms
Accessories QTA010 QTA020 QTA040 QTA100
Inverse mounting kit IMK010 IMK020 IMK100 IMK100 Inverse mounting kit Upper pole clamp
Upper pole clamp PUC010 PUC020 PUC100 PUC100
