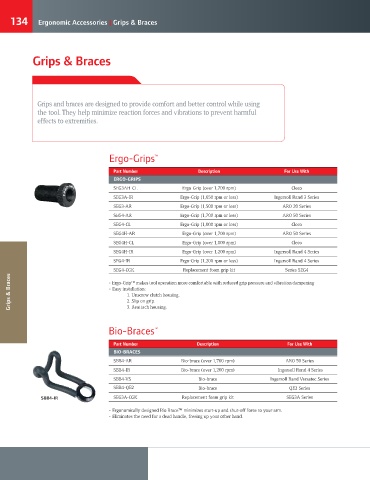

134 Ergonomic Accessories | Grips & Braces

Grips & Braces

Sets

Grips and braces are designed to provide comfort and better control while using
the tool. They help minimize reaction forces and vibrations to prevent harmful
effects to extremities.

Ergo-Grips ™

Part Number Description For Use With
ERgO-gRIPS
SEG3AH-CL Ergo-Grip (over 1,700 rpm) Cleco
SEG3A-IR Ergo-Grip (1,650 rpm or less) Ingersoll Rand 3 Series
SEG3-AR Ergo-Grip (1,500 rpm or less) ARO 20 Series
SEG4-AR Ergo-Grip (1,700 rpm or less) ARO 50 Series
SEG4-CL Ergo-Grip (1,000 rpm or less) Cleco
SEG4H-AR Ergo-Grip (over 1,700 rpm) ARO 50 Series
SEG4H-CL Ergo-Grip (over 1,000 rpm) Cleco
SEG4H-IR Ergo-Grip (over 1,200 rpm) Ingersoll Rand 4 Series
SEG4-IR Ergo-Grip (1,200 rpm or less) Ingersoll Rand 4 Series
SEG4-CGK Replacement foam grip kit Series SEG4
Grips & Braces • Ergo-Grip™ makes tool operation more comfortable with reduced grip pressure and vibration dampening

• Easy installation:
1. Unscrew clutch housing.

2. Slip on grip.

3. Reattach housing.

Bio-Braces ™
Part Number Description For Use With
bIO-bRACES
SBB4-AR Bio-brace (over 1,700 rpm) ARO 50 Series
SBB4-IR Bio-brace (over 1,200 rpm) Ingersoll Rand 4 Series
SBB4-VS Bio-brace Ingersoll Rand Versatec Series
SBB4-QE2 Bio-brace QE2 Series
SBB4-IR SEG3A-CGK Replacement foam grip kit SEG3A Series

• Ergonomically designed Bio Brace™ minimizes start-up and shut-off force to your arm.
• Eliminates the need for a dead handle, freeing up your other hand.
