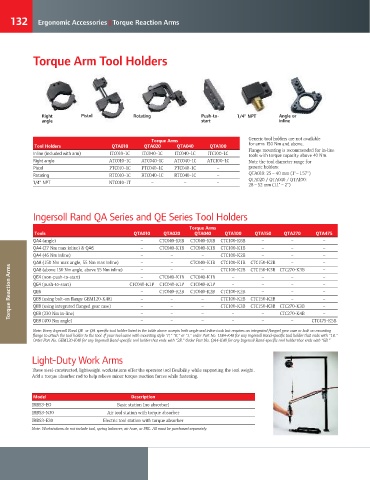

132 Ergonomic Accessories | Torque Reaction Arms

Torque Arm Tool Holders

Right Pistol Rotating Push-to- 1/4" NPT Angle or
angle start inline

Generic tool holders are not available
Torque Arms
Tool Holders QTA010 QTA020 QTA040 QTA100 for arms 150 Nm and above.
Flange mounting is recommended for in-line
Inline (included with arm) ITC010-1C ITC040-1C ITC040-1C ITC100-1C tools with torque capacity above 40 Nm.
Right angle ATC010-1C ATC040-1C ATC040-1C ATC100-1C Note the tool diameter range for
Pistol PTC010-1C PTC040-1C PTC040-1C – generic holders:
QTA010: 25 – 40 mm (1" – 1.57")
Rotating RTC010-1C RTC040-1C RTC040-1C –
QTA020 / QTA040 / QTA100:
1/4" NPT NTC010-1T – – –
28 – 52 mm (1.1" – 2")

Ingersoll Rand QA Series and QE Series Tool Holders

Torque Arms
Tools QTA010 QTA020 QTA040 QTA100 QTA150 QTA270 QTA475
QA4 (angle) – CTC040-K6B CTC040-K6B CTC100-K6B – – –
QA4 (27 Nm max inline) & QA6 – CTC040-K1B CTC040-K1B CTC100-K1B – – –
QA4 (46 Nm inline) – – – CTC100-K2B – – –
QA8 (150 Nm max angle, 55 Nm max inline) – – CTC040-K1B CTC100-K1B CTC150-K2B – – –
Torque Reaction Arms QE4 (non-push-to-start) CTC040-K1P CTC040-K1P CTC040-K1B CTC100-K2B CTC150-K2B – – – – – – – –
–
CTC100-K2B CTC150-K3B CTC270-K3B
–
–
QA8 (above 150 Nm angle, above 55 Nm inline)
CTC040-K1B
–
–
–
–
CTC040-K1P
–
–
QE4 (push-to-start)
–
QE6
–
CTC040-K2B
CTC040-K2B
CTC100-K2B
–
–
QE8
(using bolt-on flange GEM120-K48)
–
QE8 (using integrated flanged gear case)
CTC100-K3B CTC150-K3B CTC270-K3B
–
–
–
–
QE8 (230 Nm in-line)
–
–
–
–
–
QE8 (400 Nm angle) – – – – – CTC270-K4B CTC475-K5B
–

Note: Every Ingersoll Rand QE- or QA-specific tool holder listed in the table above accepts both angle and inline tools but requires an integrated flanged gear case or bolt-on mounting
flange to attach the tool holder to the tool. If your tool came with mounting style “P,” “R,” or “J,” order Part No. 15E4-K48 for any Ingersoll Rand-specific tool holder that ends with “1B.”
Order Part No. GEM120-K48 for any Ingersoll Rand-specific tool holder that ends with “2B.” Order Part No. QA4-K48 for any Ingersoll Rand-specific tool holder that ends with “6B.”
Light-Duty Work Arms
These steel-constructed, lightweight workstations offer the operator tool flexibility while supporting the tool weight.
Add a torque absorber rod to help relieve minor torque reaction forces while fastening.
Model Description
IRBS3-EO Basic station (no absorber)
IRBS3-N30 Air tool station with torque absorber
IRBS3-E30 Electric tool station with torque absorber
Note: Workstations do not include tool, spring balancer, air hose, or FRL. All must be purchased separately.
