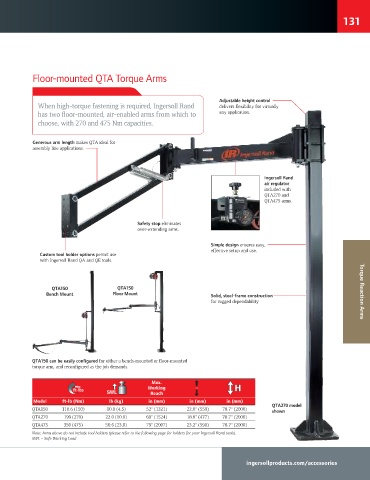

Floor-mounted QTA Torque Arms

Sets
Adjustable height control
When high-torque fastening is required, Ingersoll Rand delivers flexibility for virtually
has two loor-mounted, air-enabled arms from which to any application.
choose, with 270 and 475 Nm capacities.

Generous arm length makes QTA ideal for
assembly line applications.

Ingersoll Rand
air regulator
included with
QTA270 and
QTA475 arms.

Safety stop eliminates
over-extending arms.

Simple design ensures easy,
effective setup and use.
Custom tool holder options permit use
with Ingersoll Rand QA and QE tools.

QTA150 QTA150
Bench Mount Floor Mount Solid, steel-frame construction Torque Reaction Arms
for rugged dependability

QTA150 can be easily configured for either a bench-mounted or floor-mounted
torque arm, and reconfigured as the job demands.

Max.
Working
Reach
Model ft-lb (Nm) lb (kg) in (mm) in (mm) in (mm)
QTA270 model
QTA150 110.6 (150) 10.0 (4.5) 52" (1321) 22.0" (559) 78.7" (2000) shown
QTA270 199 (270) 22.0 (10.0) 60" (1524) 18.8" (477) 78.7" (2000)
QTA475 350 (475) 50.6 (23.0) 79" (2007) 23.2" (590) 78.7" (2000)
Note: Arms above do not include tool holders (please refer to the following page for holders for your Ingersoll Rand tools).
SWL = Safe Working Load
