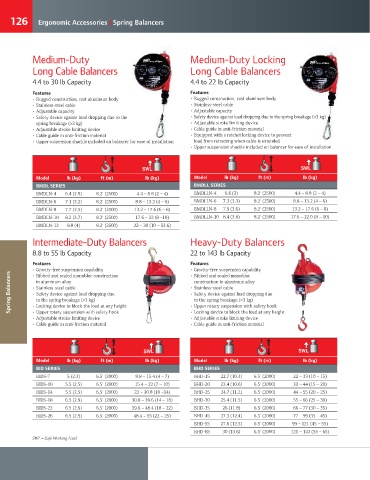

126 Ergonomic Accessories | Spring Balancers

Medium-Duty Medium-Duty Locking

Long Cable Balancers Long Cable Balancers
4.4 to 30 lb Capacity 4.4 to 22 lb Capacity

Features Features
• Rugged construction, cast aluminum body • Rugged construction, cast aluminum body
• Stainless-steel cable • Stainless-steel cable
• Adjustable capacity • Adjustable capacity
• Safety device against load dropping due to the • Safety device against load dropping due to the spring breakage (>3 kg)
spring breakage (>3 kg) • Adjustable stroke limiting device
• Adjustable stroke limiting device • Cable guide in anti-friction material

• Cable guide in anti-friction material • Equipped with a ratchet locking device to prevent
• Upper suspension shackle included on balancer for ease of installation load from retracting when cable is extended
• Upper suspension shackle included on balancer for ease of installation

Model lb (kg) ft (m) lb (kg) Model lb (kg) ft (m) lb (kg)
bMDL SERIES bMDLL SERIES
BMDLN-4 6.4 (2.9) 8.2' (2500) 4.4 – 8.8 (2 – 4) BMDLLN-4 6.6 (3) 8.2' (2500) 4.4 – 8.8 (2 – 4)
BMDLN-6 7.1 (3.2) 8.2' (2500) 8.8 – 13.2 (4 – 6) BMDLLN-6 7.3 (3.3) 8.2' (2500) 8.8 – 13.2 (4 – 6)
BMDLN-8 7.7 (3.5) 8.2' (2500) 13.2 – 17.6 (6 – 8) BMDLLN-8 7.9 (3.6) 8.2' (2500) 13.2 – 17.6 (6 – 8)
BMDLN-10 8.2 (3.7) 8.2' (2500) 17.6 – 22 (8 –10) BMDLLN-10 8.4 (3.8) 8.2' (2500) 17.6 – 22.0 (8 – 10)
BMDLN-12 8.8 (4) 8.2' (2500) 22 – 30 (10 – 13.6)

Intermediate-Duty Balancers Heavy-Duty Balancers

8.8 to 55 lb Capacity 22 to 143 lb Capacity
Features Features
• Gravity-free suspension capability • Gravity-free suspension capability
Spring Balancers • Stainless-steel cable • Stainless-steel cable
• Ribbed and sealed monobloc
• Ribbed and sealed monobloc construction
construction in aluminum alloy
in aluminum alloy
• Safety device against load dropping due
• Safety device against load dropping due
to the spring breakage (>3 kg)
to the spring breakage (>3 kg)
• Locking device to block the load at any height
• Locking device to block the load at any height
• Upper rotary suspension with safety hook
• Adjustable stroke limiting device
• Adjustable stroke limiting device • Upper rotary suspension with safety hook
• Cable guide in anti-friction material • Cable guide in anti-friction material

Model lb (kg) ft (m) lb (kg) Model lb (kg) ft (m) lb (kg)
bID SERIES bHD SERIES
BIDS-7 5 (2.3) 6.5' (2000) 8.8 – 15.4 (4 – 7) BHD-15 22.7 (10.3) 6.5' (2000) 22 – 33 (10 – 15)
BIDS-10 5.5 (2.5) 6.5' (2000) 15.4 – 22 (7 – 10) BHD-20 23.4 (10.6) 6.5' (2000) 33 – 44 (15 – 20)
BIDS-14 5.5 (2.5) 6.5' (2000) 22 – 30.8 (10 –14) BHD-25 24.7 (11.2) 6.5' (2000) 44 – 55 (20 – 25)
BIDS-18 6.5 (2.9) 6.5' (2000) 30.8 – 39.6 (14 – 18) BHD-30 25.4 (11.5) 6.5' (2000) 55 – 66 (25 – 30)
BIDS-22 6.5 (2.9) 6.5' (2000) 39.6 – 48.4 (18 – 22) BHD-35 26 (11.8) 6.5' (2000) 66 – 77 (30 – 35)
BIDS-26 6.5 (2.9) 6.5' (2000) 48.4 – 55 (22 – 25) BHD-45 27.3 (12.4) 6.5' (2000) 77 – 99 (35 – 45)
BHD-55 27.6 (12.5) 6.5' (2000) 99 – 121 (45 – 55)
BHD-65 30 (13.6) 6.5' (2000) 121 – 143 (55 – 65)
SWL = Safe Working Load
