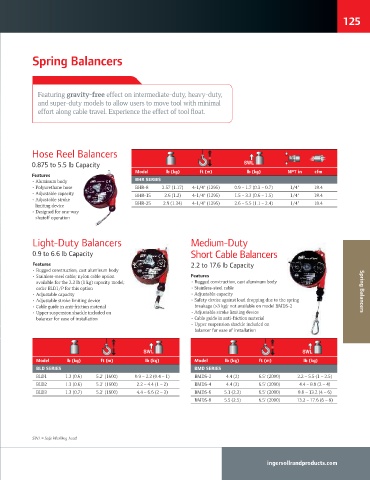

125

Spring Balancers

Sets

Featuring gravity-free effect on intermediate-duty, heavy-duty,
and super-duty models to allow users to move tool with minimal
effort along cable travel. Experience the effect of tool loat.

Hose Reel Balancers

0.875 to 5.5 lb Capacity
Model lb (kg) ft (m) lb (kg) NPT in cfm
Features
• Aluminum body bHR SERIES
• Polyurethane hose BHR-8 2.57 (1.17) 4-1/4" (1295) 0.9 – 1.7 (0.3 – 0.7) 1/4" 18.4
• Adjustable capacity BHR-15 2.6 (1.2) 4-1/4" (1295) 1.5 – 3.3 (0.6 – 1.5) 1/4" 18.4
• Adjustable stroke
limiting device BHR-25 2.9 (1.34) 4-1/4" (1295) 2.6 – 5.5 (1.1 – 2.4) 1/4" 18.4
• Designed for one-way
shutoff operation

Light-Duty Balancers Medium-Duty

0.9 to 6.6 lb Capacity Short Cable Balancers
Features 2.2 to 17.6 lb Capacity
• Rugged construction, cast aluminum body
• Stainless-steel cable; nylon cable option Features
available for the 2.2 lb (1 kg) capacity model; • Rugged construction, cast aluminum body
order BLD1/P for this option • Stainless-steel cable
• Adjustable capacity • Adjustable capacity Spring Balancers
• Adjustable stroke limiting device • Safety device against load dropping due to the spring
• Cable guide in anti-friction material breakage (>3 kg); not available on model BMDS-2
• Upper suspension shackle included on • Adjustable stroke limiting device
balancer for ease of installation • Cable guide in anti-friction material
• Upper suspension shackle included on
balancer for ease of installation

Model lb (kg) ft (m) lb (kg) Model lb (kg) ft (m) lb (kg)
bLD SERIES bMD SERIES
BLD1 1.3 (0.6) 5.2' (1600) 0.9 – 2.2 (0.4 – 1) BMDS-2 4.4 (2) 6.5' (2000) 2.2 – 5.5 (1 – 2.5)
BLD2 1.3 (0.6) 5.2' (1600) 2.2 – 4.4 (1 – 2) BMDS-4 4.4 (2) 6.5' (2000) 4.4 – 8.8 (2 – 4)
BLD3 1.3 (0.7) 5.2' (1600) 4.4 – 6.6 (2 – 3) BMDS-6 5.1 (2.3) 6.5' (2000) 8.8 – 13.2 (4 – 6)
BMDS-8 5.5 (2.5) 6.5' (2000) 13.2 – 17.6 (6 – 8)

S¥¦ §¨©ª « W¬­®¯°± ¦¬©²
