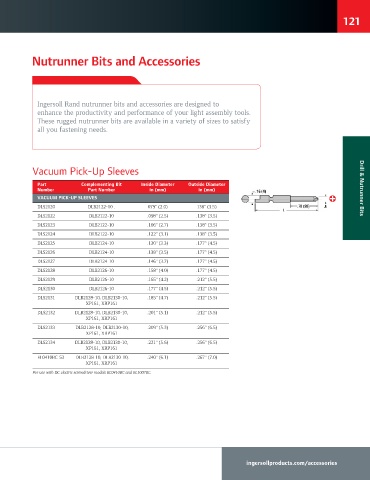

Page 121 - 英格索兰附件图册IngersollRand

121

Nutrunner Bits and Accessories

Sets

Ingersoll Rand nutrunner bits and accessories are designed to
enhance the productivity and performance of your light assembly tools.
These rugged nutrunner bits are available in a variety of sizes to satisfy
all you fastening needs.

Vacuum Pick-Up Sleeves

Part Complementing bit Inside Diameter Outside Diameter
Number Part Number in (mm) in (mm) Drill & Nutrunner Bits
VACUUM PICk-UP SLEEVES
DLS2120 DLB2122-10 . 079" (2.0) 138" (3.5)
DLS2122 DLB2122-10 .098" (2.5) .138" (3.5)
DLS2123 DLB2122-10 .106" (2.7) .138" (3.5)
DLS2124 DLB2122-10 .122" (3.1) .138" (3.5)
DLS2125 DLB2124-10 .130" (3.3) .177" (4.5)
DLS2126 DLB2124-10 .138" (3.5) .177" (4.5)
DLS2127 DLB2124-10 .146" (3.7) .177" (4.5)
DLS2128 DLB2126-10 .158" (4.0) .177" (4.5)
DLS2129 DLB2126-10 .165" (4.2) .212" (5.5)
DLS2130 DLB2126-10 .177" (4.5) .212" (5.5)
DLS2131 DLB2128-10, DLB2130-10, .185" (4.7) .212" (5.5)
XP161, XRP161
DLS2132 DLB2128-10, DLB2130-10, .201" (5.1) .212" (5.5)
XP161, XRP161
DLS2133 DLB2128-10, DLB2130-10, .209" (5.3) .256" (6.5)
XP161, XRP161
DLS2134 DLB2128-10, DLB2130-10, .221" (5.6) .256" (6.5)
XP161, XRP161
EL0410BC-53 DLB2128-10, DLB2130-10, .240" (6.1) .267" (7.0)
XP161, XRP161
For use with DC electric screwdriver models EL0410BC and EL1007BC.

ingersollproducts.com/accessories
