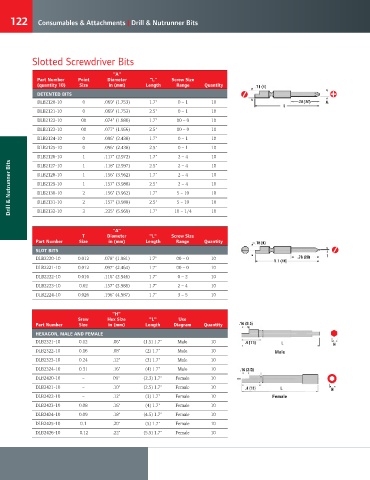

122 Consumables & Attachments | Drill & Nutrunner Bits

Slotted Screwdriver Bits

"A"
Part Number Point Diameter "L" Screw Size
(quantity 10) Size in (mm) Length Range Quantity
DETENTED bITS
DLB2120-10 0 .069" (1.753) 1.7" 0 – 1 10
DLB2121-10 0 .069" (1.753) 2.5" 0 – 1 10
DLB2122-10 00 .074" (1.880) 1.7" 00 – 0 10
DLB2123-10 00 .077" (1.956) 2.5" 00 – 0 10
DLB2124-10 0 .096" (2.438) 1.7" 0 – 1 10
DLB2125-10 0 .096" (2.438) 2.5" 0 – 1 10
DLB2126-10 1 .117" (2.972) 1.7" 2 – 4 10
Drill & Nutrunner Bits DLB2128-10 1 .156" (3.962) 1.7" 5 – 10 10
2 – 4
.118" (2.997)
DLB2127-10
10
2.5"
1
2 – 4
1
.157" (3.988)
DLB2129-10
2 – 4
10
2.5"
10
DLB2130-10
2
.156" (3.962)
1.7"
5 – 10
10
2.5"
2
.157" (3.988)
DLB2131-10
DLB2132-10 3 .235" (5.969) 1.7" 10 – 1/4 10
"A"
T Diameter "L" Screw Size
Part Number Size in (mm) Length Range Quantity
SLOT bITS
DLB2220-10 0.012 .078" (1.981) 1.7" 00 – 0 10
DLB2221-10 0.012 .097" (2.464) 1.7" 00 – 0 10
DLB2222-10 0.016 .116" (2.946) 1.7" 0 – 2 10
DLB2223-10 0.02 .157" (3.988) 1.7" 2 – 4 10
DLB2224-10 0.026 .196" (4.987) 1.7" 3 – 5 10

"H"
Srew Hex Size "L" Use
Part Number Size in (mm) Length Diagram Quantity
HExAgON, MALE AND FEMALE
DLB2321-10 0.12 .06" (1.5) 1.7" Male 10
DLB2322-10 0.16 .08" (2) 1.7" Male 10 Male
DLB2323-10 0.24 .12" (3) 1.7" Male 10
DLB2324-10 0.31 .16" (4) 1.7" Male 10
DLB2420-10 – 09" (2.3) 1.7" Female 10
DLB2421-10 – .10" (2.5) 1.7" Female 10
DLB2422-10 – .12" (3) 1.7" Female 10 Female
DLB2423-10 0.08 .16" (4) 1.7" Female 10
DLB2424-10 0.09 .18" (4.5) 1.7" Female 10
DLB2425-10 0.1 .20" (5) 1.7" Female 10
DLB2426-10 0.12 .22" (5.5) 1.7" Female 10
