Test & Measurement

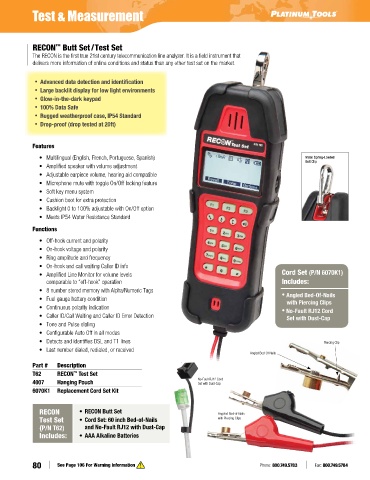

RECON Butt Set/Test Set
™
The RECON is the first true 21st century telecommunication line analyzer. It is a field instrument that
delivers more information of online conditions and status than any other test set on the market.

• Advanced data detection and identification
• Large backlit display for low light environments
• Glow-in-the-dark keypad
• 100% Data Safe
• Rugged weatherproof case, IP54 Standard
• Drop-proof (drop tested at 20ft)

Features

• Multilingual (English, French, Portuguese, Spanish) Metal Spring-Loaded
Belt Clip
• Amplified speaker with volume adjustment
• Adjustable earpiece volume, hearing aid compatible
• Microphone mute with toggle On/Off locking feature
• Soft key menu system
• Cushion boot for extra protection
• Backlight 0 to 100% adjustable with On/Off option
• Meets IP54 Water Resistance Standard
Functions

• Off-hook current and polarity
• On-hook voltage and polarity
• Ring amplitude and frequency
• On-hook and call waiting Caller ID info
• Amplified Line Monitor for volume levels Cord Set (P/N 6070K1)
comparable to “off-hook” operation Includes:
• 8 number stored memory with Alpha/Numeric Tags
• Fuel gauge battery condition • Angled Bed-Of-Nails
with Piercing Clips
• Continuous polarity indication • No-Fault RJ12 Cord
• Caller ID/Call Waiting and Caller ID Error Detection Set with Dust-Cap
• Tone and Pulse dialing
• Configurable Auto Off in all modes
• Detects and identifies DSL and T1 lines Piercing Clip
• Last number dialed, redialed, or received
Angled Bed-Of-Nails
Part # Description
™
T62 RECON Test Set
4007 Hanging Pouch No-Fault RJ12 Cord
Set with Dust-Cap
6070K1 Replacement Cord Set Kit

RECON • RECON Butt Set Angeled Bed-of-Nails
Test Set • Cord Set: 60 inch Bed-of-Nails with Piercing Clips
(P/N T62) and No-Fault RJ12 with Dust-Cap
Includes: • AAA Alkaline Batteries

80 See Page 106 For Warning Information Phone: 800.749.5783 Fax: 800.749.5784
