Test & Measurement

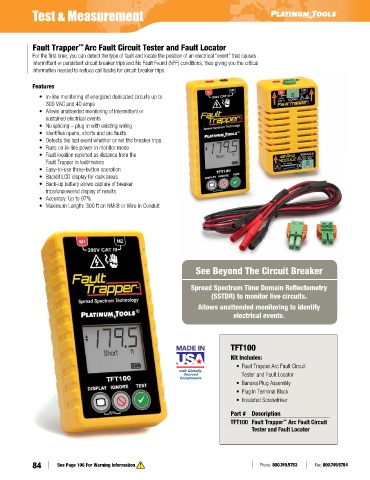

Fault Trapper Arc Fault Circuit Tester and Fault Locator
™
For the first time, you can detect the type of fault and locate the position of an electrical “event” that causes
intermittent or persistent circuit breaker trips and No Fault Found (NFF) conditions, thus giving you the critical
information needed to reduce call backs for circuit breaker trips.

Features
• In-line monitoring of energized dedicated circuits up to
300 VAC and 40 amps
• Allows unattended monitoring of intermittent or
sustained electrical events
• No splicing – plug in with existing wiring
• Identifies opens, shorts and arc faults
• Detects the last event whether or not the breaker trips
• Runs on in-line power in monitor mode
• Fault location reported as distance from the
Fault Trapper in feet/meters
• Easy-to-use three-button operation
• Backlit LCD display for dark areas
• Back-up battery allows capture of breaker
trips/unpowered display of results
• Accuracy: Up to 97%
• Maximum Length: 300 ft on NM-B or Wire in Conduit

See Beyond The Circuit Breaker

Spread Spectrum Time Domain Reflectometry
(SSTDR) to monitor live circuits.
Allows unattended monitoring to identify
electrical events.

TFT100
Made Kit Includes:
in the USA • Fault Trapper Arc Fault Circuit
Tester and Fault Locator
• Banana Plug Assembly
• Plug In Terminal Block
• Insulated Screwdriver
Part # Description
TFT100 Fault Trapper Arc Fault Circuit
™
Tester and Fault Locator

84 See Page 106 For Warning Information Phone: 800.749.5783 Fax: 800.749.5784
