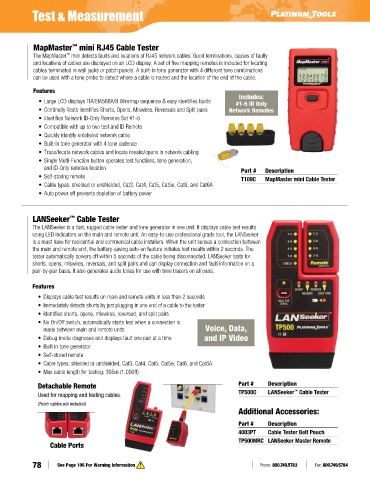

Test & Measurement

MapMaster mini RJ45 Cable Tester
™
The MapMaster mini detects faults and locations of RJ45 network cables. Good terminations, causes of faulty
™
and locations of cables are displayed on an LCD display. A set of five mapping remotes is included for locating
cables terminated in wall jacks or patch panels. A built-in tone generator with 4 different tone combinations
can be used with a tone probe to detect where a cable is routed and the location of the end of the cable.

Features
Includes:
• Large LCD displays TIA/EIA568A/B Wiremap sequence & easy identifies faults #1-5 ID Only
• Continuity Tests Identifies Shorts, Opens, Miswires, Reversals and Split pairs Network Remotes
• Identifies Network ID-Only Remotes Set #1-5
• Compatible with up to two test and ID Remote
• Quickly identify unlabeled network cable
• Built-in tone generator with 4 tone cadence
• Trace/locate network cables and locate breaks/opens in network cabling
• Single Multi-Function button operates test functions, tone generation,
and ID-Only remotes location Part # Description
• Self-storing remote T109C MapMaster mini Cable Tester
• Cable types: shielded or unshielded, Cat3, Cat4, Cat5, Cat5e, Cat6, and Cat6A
• Auto power off prevents depletion of battery power

LANSeeker Cable Tester
™
The LANSeeker is a fast, rugged cable tester and tone generator in one unit. It displays cable test results
using LED indicators on the main and remote unit. An easy-to-use professional grade tool, the LANSeeker
is a must have for residential and commercial cable installers. When the unit senses a connection between
the main and remote unit, the battery-saving auto-on feature initiates test results within 2 seconds. The
tester automatically powers off within 5 seconds of the cable being disconnected. LANSeeker tests for
shorts, opens, miswires, reversals, and split pairs and can display connection and fault information on a
pair-by-pair basis. It also generates audio tones for use with tone tracers on all pairs.

Features
• Displays cable test results on main and remote units in less than 2 seconds
• Immediately detects shorts by just plugging in one end of a cable to the tester
• Identifies shorts, opens, miswires, reversed, and split pairs
• No On/Off switch, automatically starts test when a connection is
made between main and remote units Voice, Data,
• Debug mode diagnoses and displays fault one pair at a time and IP Video
• Built in tone generator
• Self-stored remote
• Cable types: shielded or unshielded, Cat3, Cat4, Cat5, Cat5e, Cat6, and Cat6A
• Max cable length for testing: 305m (1,000ft)

Detachable Remote Part # Description
™
Used for mapping and testing cables. TP500C LANSeeker Cable Tester
(Patch cables not included)
Additional Accessories:

Part # Description
4003PT Cable Tester Belt Pouch
TP500MRC LANSeeker Master Remote
Cable Ports
