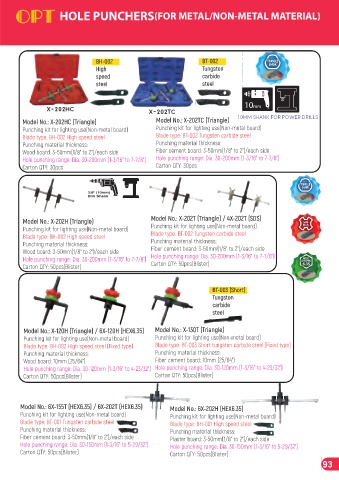

Page 99 - OPT英文手动工具2023

HOLE PUNCHERS(FOR METAL/NON-METAL MATERIAL)

BH-002 BT-002
High Tungsten
speed carbide
steel steel

X-202HC X-202TC

Model No.: X-202HC (Triangle) Model No.: X-202TC (Triangle) 10mm SHANK for Power Drills
Punching kit for lighting use(Non-metal board) Punching kit for lighting use(Non-metal board)
Blade type: BH-002 High speed steel Blade type: BT-002 Tungsten carbide steel
Punching material thickness: Punching material thickness:
Wood board: 3-50mm(1/8” to 2”)/each side Fiber cement board: 3-50mm(1/8” to 2”)/each side
Hole punching range: Dia. 30-200mm (1-3/16” to 7-7/8”) Hole punching range: Dia. 30-200mm (1-3/16” to 7-7/8”)
Carton QTY: 30pcs Carton QTY: 30pcs

Model No.: X-202H (Triangle) Model No.: X-202T (Triangle) / 4X-202T (SDS)
Punching kit for lighting use(Non-metal board) Punching kit for lighting use(Non-metal board)
Blade type: BH-002 High speed steel Blade type: BT-002 Tungsten carbide steel
Punching material thickness: Punching material thickness:
Wood board: 3-50mm(1/8” to 2”)/each side Fiber cement board: 3-50mm(1/8” to 2”)/each side
Hole punching range: Dia. 30-200mm (1-3/16” to 7-7/8”) Hole punching range: Dia. 30-200mm (1-3/16” to 7-7/8”)
Carton QTY: 50pcs(Blister) Carton QTY: 50pcs(Blister)

BT-003 (Short)
Tungsten
carbide
steel

Model No.: X-120H (Triangle) / 6X-120H (HEX6.35) Model No.: X-130T (Triangle)
Punching kit for lighting use(Non-metal board) Punching kit for lighting use(Non-metal board)
Blade type: BH-002 High speed steel (Fixed type) Blade type: BT-003 Short tungsten carbide steel (Fixed type)
Punching material thickness: Punching material thickness:
Wood board: 10mm (25/64”) Fiber cement board: 10mm (25/64”)
Hole punching range: Dia. 30-120mm (1-3/16” to 4-23/32”) Hole punching range: Dia. 30-120mm (1-3/16” to 4-23/32”)
Carton QTY: 50pcs(Blister) Carton QTY: 50pcs(Blister)

Model No.: 6X-155T (HEX6.35) / 6X-202T (HEX6.35) Model No.: 6X-202H (HEX6.35)
Punching kit for lighting use(Non-metal board) Punching kit for lighting use(Non-metal board)
Blade type: BT-001 Tungsten carbide steel Blade type: BH-001 High speed steel
Punching material thickness: Punching material thickness:
Fiber cement board: 3-50mm(1/8” to 2”)/each side Plaster board: 3-50mm(1/8” to 2”)/each side
Hole punching range: Dia. 30-150mm (1-3/16” to 5-29/32”) Hole punching range: Dia. 30-150mm (1-3/16” to 5-29/32”)
Carton QTY: 50pcs(Blister) Carton QTY: 50pcs(Blister)
93
