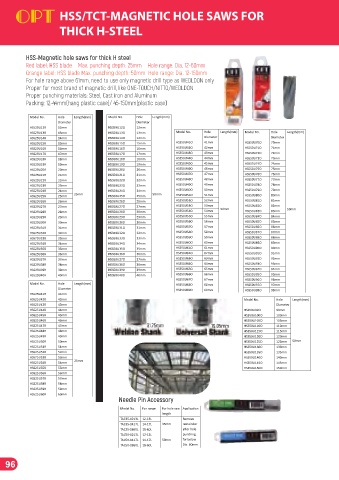

HSS/TCT-MAGNETIC HOLE SAWS FOR

THICK H-STEEL

HSS-Magnetic hole saws for thick H steel
Red label: HSS blade Max. punching depth: 25mm Hole range: Dia. 12-60mm
Orange label: HSS blade Max. punching depth: 50mm Hole range: Dia. 12-150mm
For hole range above 61mm, need to use only magnetic drill type as WEDLDON only
Proper for most brand of magnetic drill, like ONE-TOUCH/NITTO/WEDLDON
Proper punching materials: Steel, Cast iron and Aluminum
Packing: 12-44mm(hang plastic case)/ 45-150mm(plastic case)

Model No. Hole Length(mm) Model No. Hole Length(mm)
Diameter Diameter
HSS25U12R 12mm HSS50U12O 12mm
HSS25U13R 13mm HSS50U13O 13mm Model No. Hole Length(mm) Model No. Hole Length(mm)
HSS25U14R 14mm HSS50U14O 14mm Diameter Diameter
HSS25U15R 15mm HSS50U15O 15mm HSS50U41O 41mm HSS50U70O 70mm
HSS25U16R 16mm HSS50U16O 16mm HSS50U42O 42mm HSS50U71O 71mm
HSS25U17R 17mm HSS50U17O 17mm HSS50U43O 43mm HSS50U72O 72mm
HSS25U18R 18mm HSS50U18O 18mm HSS50U44O 44mm HSS50U73O 73mm
HSS25U19R 19mm HSS50U19O 19mm HSS50U45O 45mm HSS50U74O 74mm
HSS25U20R 20mm HSS50U20O 20mm HSS50U46O 46mm HSS50U75O 75mm
HSS25U21R 21mm HSS50U21O 21mm HSS50U47O 47mm HSS50U76O 76mm
HSS25U22R 22mm HSS50U22O 22mm HSS50U48O 48mm HSS50U77O 77mm
HSS25U23R 23mm HSS50U23O 23mm HSS50U49O 49mm HSS50U78O 78mm

HSS25U24R 24mm HSS50U24O 24mm HSS50U50O 50mm HSS50U79O 79mm
25mm 50mm
HSS25U25R 25mm HSS50U25O 25mm HSS50U51O 51mm HSS50U80O 80mm
HSS25U26R 26mm HSS50U26O 26mm HSS50U52O 52mm HSS50U81O 81mm
HSS25U27R 27mm HSS50U27O 27mm HSS50U53O 53mm 50mm HSS50U82O 82mm
HSS25U28R 28mm HSS50U28O 28mm HSS50U54O 54mm HSS50U83O 83mm 50mm
HSS25U29R 29mm HSS50U29O 29mm HSS50U55O 55mm HSS50U84O 84mm
HSS25U30R 30mm HSS50U30O 30mm HSS50U56O 56mm HSS50U85O 85mm
HSS25U31R 31mm HSS50U31O 31mm HSS50U57O 57mm HSS50U86O 86mm
HSS25U32R 32mm HSS50U32O 32mm HSS50U58O 58mm HSS50U87O 87mm
HSS25U33R 33mm HSS50U33O 33mm HSS50U59O 59mm HSS50U88O 88mm
HSS25U34R 34mm HSS50U34O 34mm HSS50U60O 60mm HSS50U89O 89mm
HSS25U35R 35mm HSS50U35O 35mm HSS50U61O 61mm HSS50U90O 90mm
HSS25U36R 36mm HSS50U36O 36mm HSS50U62O 62mm HSS50U91O 91mm
HSS25U37R 37mm HSS50U37O 37mm HSS50U63O 63mm HSS50U92O 92mm
HSS25U38R 38mm HSS50U38O 38mm HSS50U64O 64mm HSS50U93O 93mm
HSS25U39R 39mm HSS50U39O 39mm HSS50U65O 65mm HSS50U94O 94mm
HSS25U40R 40mm HSS50U40O 40mm HSS50U66O 66mm HSS50U95O 95mm
HSS50U67O 67mm HSS50U96O 96mm
Model No. Hole Length(mm) HSS50U68O 68mm HSS50U97O 97mm
Diameter HSS50U69O 69mm HSS50U98O 98mm
HSS25U41R 41mm
HSS25U42R 42mm Model No. Hole Length(mm)
HSS25U43R 43mm Diameter
HSS25U44R 44mm HSS50U99O 99mm
HSS25U45R 45mm HSS50U100O 100mm
HSS25U46R 46mm HSS50U105O 105mm
HSS25U47R 47mm 31.75mm 19.05mm HSS50U110O 110mm
HSS25U48R 48mm HSS50U115O 115mm
HSS25U49R 49mm HSS50U120O 120mm
HSS25U50R 50mm HSS50U125O 125mm 50mm
HSS25U51R 51mm HSS50U130O 130mm
HSS25U52R 52mm HSS50U135O 135mm

HSS25U53R 53mm HSS50U140O 140mm
25mm
HSS25U54R 54mm HSS50U145O 145mm
HSS25U55R 55mm HSS50U150O 150mm
HSS25U56R 56mm
HSS25U57R 57mm
HSS25U58R 58mm
HSS25U59R 59mm
HSS25U60R 60mm
Needle Pin Accessory
Model No. For range For hole saw Application
length
TAC35-1213L 12-13L Remove
TAC35-1417L 14-17L 35mm remainder
TAC35-1860L 18-60L after hole
TAC50-1213L 12-13L punching,
TAC50-1417L 14-17L 50mm for below
TAC50-1860L 18-60L Dia. 60mm
