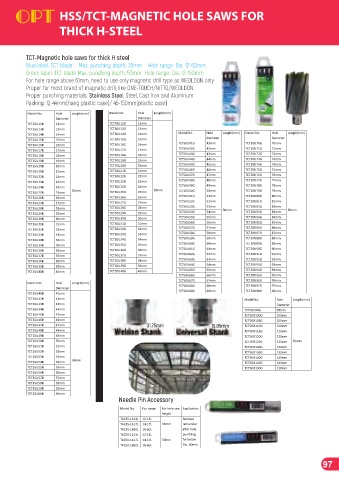

Page 103 - OPT英文手动工具2023

HSS/TCT-MAGNETIC HOLE SAWS FOR

THICK H-STEEL

TCT-Magnetic hole saws for thick H steel
Blue label: TCT blade Max. punching depth: 35mm Hole range: Dia. 12-60mm
Green label: TCT blade Max. punching depth: 50mm Hole range: Dia. 12-150mm
For hole range above 61mm, need to use only magnetic drill type as WEDLDON only
Proper for most brand of magnetic drill, like ONE-TOUCH/NITTO/WEDLDON
Proper punching materials: Stainless Steel, Steel, Cast iron and Aluminum
Packing: 12-44mm(hang plastic case)/ 45-150mm(plastic case)
Model No. Hole Length(mm) Model No. Hole Length(mm)
Diameter Diameter
TCT35U12B 12mm TCT50U12G 12mm
TCT35U13B 13mm TCT50U13G 13mm
TCT35U14B 14mm TCT50U14G 14mm Model No. Hole Length(mm) Model No. Hole Length(mm)
TCT35U15B 15mm TCT50U15G 15mm Diameter Diameter
TCT35U16B 16mm TCT50U16G 16mm TCT50U41G 41mm TCT50U70G 70mm
TCT35U17B 17mm TCT50U17G 17mm TCT50U42G 42mm TCT50U71G 71mm
TCT35U18B 18mm TCT50U18G 18mm TCT50U43G 43mm TCT50U72G 72mm
TCT35U19B 19mm TCT50U19G 19mm TCT50U44G 44mm TCT50U73G 73mm
TCT35U20B 20mm TCT50U20G 20mm TCT50U45G 45mm TCT50U74G 74mm
TCT35U21B 21mm TCT50U21G 21mm TCT50U46G 46mm TCT50U75G 75mm
TCT35U22B 22mm TCT50U22G 22mm TCT50U47G 47mm TCT50U76G 76mm
TCT35U23B 23mm TCT50U23G 23mm TCT50U48G 48mm TCT50U77G 77mm
TCT35U24B 24mm TCT50U24G 24mm 50mm TCT50U49G 49mm TCT50U78G 78mm
TCT35U25B 25mm 35mm TCT50U25G 25mm TCT50U50G 50mm TCT50U79G 79mm
TCT35U26B 26mm TCT50U26G 26mm TCT50U51G 51mm TCT50U80G 80mm
TCT35U27B 27mm TCT50U27G 27mm TCT50U52G 52mm TCT50U81G 81mm
TCT35U28B 28mm TCT50U28G 28mm TCT50U53G 53mm 50mm TCT50U82G 82mm 50mm
TCT35U29B 29mm TCT50U29G 29mm TCT50U54G 54mm TCT50U83G 83mm
TCT35U30B 30mm TCT50U30G 30mm TCT50U55G 55mm TCT50U84G 84mm
TCT35U31B 31mm TCT50U31G 31mm TCT50U56G 56mm TCT50U85G 85mm
TCT35U32B 32mm TCT50U32G 32mm TCT50U57G 57mm TCT50U86G 86mm
TCT35U33B 33mm TCT50U33G 33mm TCT50U58G 58mm TCT50U87G 87mm
TCT35U34B 34mm TCT50U34G 34mm TCT50U59G 59mm TCT50U88G 88mm
TCT35U35B 35mm TCT50U35G 35mm TCT50U60G 60mm TCT50U89G 89mm
TCT35U36B 36mm TCT50U36G 36mm TCT50U61G 61mm TCT50U90G 90mm
TCT35U37B 37mm TCT50U37G 37mm TCT50U62G 62mm TCT50U91G 91mm
TCT35U38B 38mm TCT50U38G 38mm TCT50U63G 63mm TCT50U92G 92mm
TCT35U39B 39mm TCT50U39G 39mm TCT50U64G 64mm TCT50U93G 93mm
TCT35U40B 40mm TCT50U40G 40mm TCT50U65G 65mm TCT50U94G 94mm
TCT50U66G 66mm TCT50U95G 95mm
TCT50U67G 67mm TCT50U96G 96mm
Model No. Hole Length(mm)
Diameter TCT50U68G 68mm TCT50U97G 97mm
TCT35U41B 41mm TCT50U69G 69mm TCT50U98G 98mm
TCT35U42B 42mm Model No. Hole Length(mm)
TCT35U43B 43mm Diameter
TCT35U44B 44mm TCT50U99G 99mm
TCT35U45B 45mm TCT50U100G 100mm
TCT35U46B 46mm TCT50U105G 105mm
TCT35U47B 47mm 31.75mm 19.05mm TCT50U110G 110mm
TCT35U48B 48mm TCT50U115G 115mm
TCT35U49B 49mm TCT50U120G 120mm
TCT35U50B 50mm TCT50U125G 125mm 50mm
TCT35U51B 51mm TCT50U130G 130mm
TCT35U52B 52mm TCT50U135G 135mm

TCT35U53B 53mm TCT50U140G 140mm
35mm
TCT35U54B 54mm TCT50U145G 145mm
TCT35U55B 55mm TCT50U150G 150mm
TCT35U56B 56mm
TCT35U57B 57mm
TCT35U58B 58mm
TCT35U59B 59mm
TCT35U60B 60mm
Needle Pin Accessory

Model No. For range For hole saw Application
length
TAC35-1213L 12-13L Remove
TAC35-1417L 14-17L 35mm remainder
TAC35-1860L 18-60L after hole
TAC50-1213L 12-13L punching,
TAC50-1417L 14-17L 50mm for below
TAC50-1860L 18-60L Dia. 60mm
