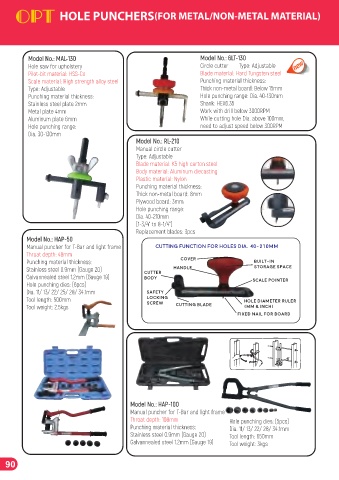

HOLE PUNCHERS(FOR METAL/NON-METAL MATERIAL)

Model No.: MAL-130 Model No.: 6LT-130
Hole saw for upholstery Circle cutter Type: Adjustable
Pilot-bit material: HSS-Co Blade material: Hard Tungsten steel
Scale material: High strength alloy steel Punching material thickness:
Type: Adjustable Thick non-metal board: Below 15mm
Punching material thickness: Hole punching range: Dia. 40-130mm
Stainless steel plate 2mm Shank: HEX6.35
Metal plate 4mm Work with drill below 3000RPM
Aluminum plate 6mm While cutting hole Dia. above 100mm,
Hole punching range: need to adjust speed below 300RPM
Dia. 30-130mm
Model No.: RL-210
Manual circle cutter
Type: Adjustable
Blade material: K5 high carton steel
Body material: Aluminum diecasting
Plastic material: Nylon
Punching material thickness:
Thick non-metal board: 8mm
Plywood board: 3mm
Hole punching range:
Dia. 40-210mm
(1-3/4” to 8-1/4”)
Replacement blades: 3pcs
Model No.: HAP-50
Manual puncher for T-Bar and light frame CUTTING FUNCTION FOR HOLES DIA. 40-210mm
Throat depth: 48mm
Punching material thickness: Cover Built-in
Stainless steel 0.9mm (Gauge 20) Cutter Handle storage space
Galvannealed steel 1.2mm (Gauge 19) Body Scale pointer
Hole punching dies: (6pcs)
Dia. 11/ 13/ 22/ 25/ 28/ 34.1mm Safety
Tool length: 500mm locking Hole diameter ruler
Tool weight: 2.5kgs screw Cutting blade (mm & inch)
Fixed nail for board

Model No.: HAP-100
Manual puncher for T-Bar and light frame
Throat depth: 108mm Hole punching dies: (5pcs)
Punching material thickness: Dia. 11/ 13/ 22/ 28/ 34.1mm
Stainless steel 0.9mm (Gauge 20) Tool length: 650mm
Galvannealed steel 1.2mm (Gauge 19) Tool weight: 3kgs
