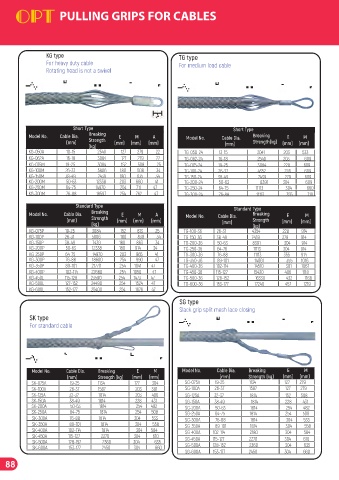

PULLING GRIPS FOR CABLES

KG type TG type
For heavy duty cable For medium load cable
Rotating head is not a swivel

Short Type Short Type
Breaking
Model No. Cable Dia. E M A Model No. Cable Dia. Breaking E M
(mm) Strength (mm) (mm) (mm) (mm) Strength(kg) (mm) (mm)
(kg)
KG-050A 10-15 2540 127 279 22 TG-050-24 13-15 2041 203 533
KG-062A 16-18 3084 127 279 22 TG-062-24 16-18 2540 203 609
KG-075M 19-25 3084 152 508 25 TG-075-24 19-25 3084 228 609
KG-100M 26-37 5806 180 508 34 TG-100-24 26-37 4352 228 609
KG-150M 38-49 7439 180 635 34 TG-150-24 38-49 7439 279 609
KG-200M 50-63 12338 203 660 41 TG-200-24 50-63 8391 304 609
KG-250M 64-75 14970 254 711 47 TG-250-24 64-75 11113 304 660
KG-300M 76-88 18597 254 762 47 TG-300-24 76-88 11113 355 710
Standard Type Standard Type
Breaking
Model No. Cable Dia. E M A Model No. Cable Dia. Breaking E M
(mm) Strength (mm) (mm) (mm) (mm) Strength (mm) (mm)
(kg) (kg)
KG-075P 19-25 3084 152 813 25 TG-100-36 26-31 4354 228 914
KG-100P 26-31 5806 180 838 34 TG-150-36 38-49 7439 279 914
KG-150P 38-49 7439 180 863 34 TG-200-36 50-63 8391 304 914
KG-200P 50-63 12338 180 914 34 TG-250-36 64-76 11113 304 914
KG-250P 64-75 14970 203 965 41 TG-300-36 76-88 11113 355 914
KG-300P 76-88 18600 254 990 47 TG-350-36 89-101 14061 355 1016
KG-350P 89-101 21770 254 1041 47 TG-400-36 102-114 14510 381 1067
KG-400P 102-114 22680 254 1050 47 TG-450-36 115-127 15420 406 1118
KG-450L 115-126 23590 254 1473 47 TG-500-36 128-152 16330 432 1168
KG-500L 127-152 24490 254 1524 47 TG-600-36 153-177 17240 457 1219
KG-600L 152-177 25400 254 1676 47
SG type
Slack grip split mesh lace closing
SK type
For standard cable

Model No. Cable Dia. Breaking E M Model No. Cable Dia. Breaking E M
(mm) Strength (kg) (mm) (mm) (mm) Strength (kg) (mm) (mm)
SK-075A 19-25 1134 177 304 SG-075A 19-25 1134 127 279
SK-100A 26-37 1587 203 381 SG-100A 26-37 1587 127 279
SK-125A 32-37 1814 203 406 SG-125A 32-37 1814 152 508
SK-150A 38-49 1814 228 431 SG-150A 38-49 1814 228 431
SK-200A 50-63 1814 254 482 SG-200A 50-63 1814 254 482
SK-250A 64-75 1814 254 508 SG-250A 64-75 1814 254 508
SK-300A 76-88 1814 304 533 SG-300A 76-88 1814 304 533
SK-350A 89-101 1814 304 558 SG-350A 89-101 1814 304 558
SK-400A 102-114 1814 304 584 SG-400A 102-114 2180 304 584
SK-450A 115-127 2270 304 610 SG-450A 115-127 2270 304 610
SK-500A 128-152 2360 304 635
SK-600A 153-177 2450 304 660 SG-500A 128-152 2360 304 635
SG-600A 153-177 2450 304 660
88
