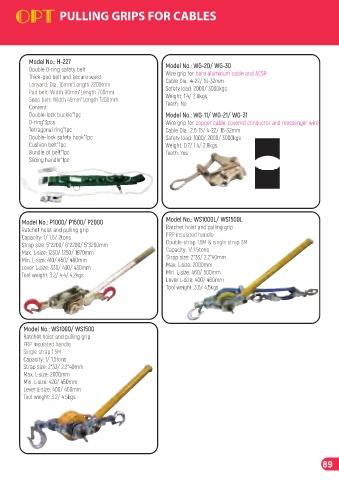

Page 95 - OPT英文手动工具2023

PULLING GRIPS FOR CABLES

Model No.: H-227 Model No.: WG-20/ WG-30
Double D-ring safety belt
Thick-pad belt and secure waist Wire grip for bare aluminum cable and ACSR
Lanyard: Dia. 16mm*Length 2200mm Cable Dia.: 4-22/ 16-32mm
Pad belt: Width 90mm*Length 700mm Safety load: 2000/ 3000kgs
Snap belt: Width 45mm*Length 1200mm Weight: 1.4/ 2.8kgs
Teeth: No
Content:
Double-lock buckle*1pc Model No.: WG-11/ WG-21/ WG-31
D-ring*3pcs Wire grip for copper cable, covered conductor and messenger wire
Tetragonal ring*1pc Cable Dia.: 2.6-15/ 4-22/ 16-32mm
Double-lock safety hook*1pc Safety load: 1000/ 2000/ 3000kgs
Cushion belt*1pc Weight: 0.7/ 1.4/ 2.8kgs
Bundle of belt*1pc Teeth: Yes
Sliding handle*1pc

Model No.: P1000/ P1500/ P2000 Model No.: WS1000L/ WS1500L
Ratchet hoist and pulling grip Ratchet hoist and pulling grip
Capacity: 1/ 1.5/ 2tons FRP insulated handle
Strap size: 5*2200/ 6*2200/ 5*3200mm Double-strap 1.5M & single strap 3M
Max. L-size: 1230/ 1250/ 1870mm Capacity: 1/ 1.5tons
Min. L-size: 410/ 450/ 480mm Strap size: 2*33/ 2.2*40mm
Lever L-size: 330/ 430/ 430mm Max. L-size: 2000mm
Tool weight: 3.2/ 4.4/ 4.2kgs Min. L-size: 460/ 500mm
Lever L-size: 400/ 460mm
Tool weight: 3.6/ 4.5kgs

Model No.: WS1000/ WS1500
Ratchet hoist and pulling grip
FRP insulated handle
Single strap 1.5M
Capacity: 1/ 1.5tons
Strap size: 2*33/ 2.2*40mm
Max. L-size: 2000mm
Min. L-size: 420/ 450mm
Lever L-size: 400/ 460mm
Tool weight: 3.2/ 4.5kgs

89
