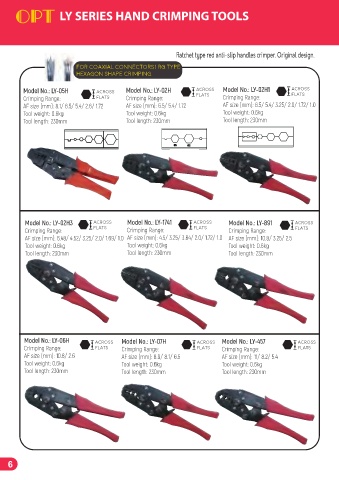

LY SERIES HAND CRIMPING TOOLS

Ratchet type red anti-slip handles crimper. Original design.

For coaxial connectors/ RG type
HEXAGON shape crimping

Model No.: LY-05H across Model No.: LY-02H across Model No.: LY-02H1 across
flats
Crimping Range: flats Crimping Range: flats Crimping Range:
AF size (mm): 8.1/ 6.5/ 5.4/ 2.6/ 1.72 AF size (mm): 6.5/ 5.4/ 1.72 AF size (mm): 6.5/ 5.4/ 3.25/ 2.0/ 1.72/ 1.0
Tool weight: 0.6kg Tool weight: 0.6kg Tool weight: 0.6kg
Tool length: 230mm Tool length: 230mm Tool length: 230mm

Model No.: LY-02H3 across Model No.: LY-1741 across Model No.: LY-891 across
Crimping Range: flats Crimping Range: flats Crimping Range: flats
AF size (mm): 6.48/ 4.52/ 3.25/ 2.0/ 1.69/ 1.0 AF size (mm): 4.5/ 3.25/ 3.84/ 2.0/ 1.72/ 1.0 AF size (mm): 10.8/ 3.25/ 2.5
Tool weight: 0.6kg Tool weight: 0.6kg Tool weight: 0.6kg
Tool length: 230mm Tool length: 230mm Tool length: 230mm

Model No.: LY-06H across Model No.: LY-07H across Model No.: LY-457 across
Crimping Range: flats Crimping Range: flats Crimping Range: flats
AF size (mm): 10.8/ 2.6 AF size (mm): 8.9/ 8.1/ 6.5 AF size (mm): 11/ 8.2/ 5.4
Tool weight: 0.6kg Tool weight: 0.6kg Tool weight: 0.6kg
Tool length: 230mm Tool length: 230mm Tool length: 230mm

6
