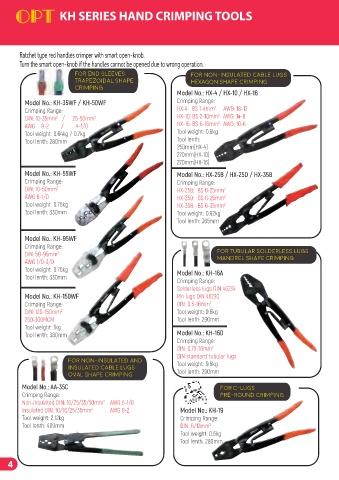

KH SERIES HAND CRIMPING TOOLS

Ratchet type red handles crimper with smart open-knob.
Turn the smart open-knob if the handles cannot be opened due to wrong operation.

For end sleeves For non-insulated cable lugs
Trapezoidal shape HEXAGON shape crimping
crimping
Model No.: HX-4 / HX-10 / HX-16
Model No.: KH-35WF / KH-50WF Crimping Range:
Crimping Range: HX-4: BS 1-4mm 2 AWG: 18-12
2
DIN: 10-35mm / 25-50mm HX-10: BS 2-10mm AWG: 14-8
2
2
2
AWG 8-2 / 4-1/0 HX-16: BS 6-16mm AWG: 10-6
Tool weight: 0.64kg / 0.7kg Tool weight: 0.6kg
Tool lenth: 280mm Tool lenth:
250mm(HX-4)
270mm(HX-10)
270mm(HX-16)
Model No.: KH-55WF Model No.: HX-25B / HX-25D / HX-35B
Crimping Range: Crimping Range:
DIN: 10-50mm 2 HX-25B: BS 6-25mm 2
AWG 8-1/0 HX-25D: GS 6-25mm 2
Tool weight: 0.76kg HX-35B: BS 6-35mm
2
Tool lenth: 330mm Tool weight: 0.92kg
Tool lenth: 365mm

Model No.: KH-95WF
Crimping Range:
DIN: 50-95mm For tubular solderless lugs
2
AWG 1/0-3/0 Mandrel shape crimping
Tool weight: 0.76kg Model No.: KH-16A
Tool lenth: 330mm
Crimping Range:
Solderless lugs DIN 46234
Model No.: KH-150WF Pin lugs DIN 46230
Crimping Range: DIN: 0.5-16mm 2
DIN: 120-150mm Tool weight: 0.6kg
2
250-300MCM Tool lenth: 290mm
Tool weight: 1kg
Tool lenth: 380mm Model No.: KH-16D
Crimping Range:
DIN: 0.75-16mm
2
DIN standard tubular lugs
For non-insulated and Tool weight: 0.6kg
insulated cable lugs
Oval shape crimping Tool lenth: 290mm
Model No.: AA-35C For C-lugs
Crimping Range: Pre-round crimping
Non-insulated DIN: 16/25/35/50mm AWG 6-1/0
2
Insulated DIN: 10/16/25/35mm 2 AWG 8-2 Model No.: KH-19
Tool weight: 2.12kg Crimping Range:
Tool lenth: 409mm DIN: 6/12mm 2

Tool weight: 0.6kg
Tool lenth: 280mm

4
