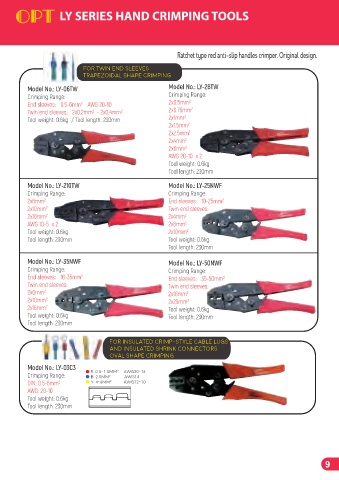

LY SERIES HAND CRIMPING TOOLS

Ratchet type red anti-slip handles crimper. Original design.

For TWIN end sleeves
Trapezoidal shape crimping
Model No.: LY-06TW Model No.: LY-26TW
Crimping Range: Crimping Range:
End sleeves: 0.5-6mm AWG 20-10 2x0.5mm 2
2
Twin end sleeves: 2x0.2mm - 2x0.4mm 2 2x0.75mm 2
2
Tool weight: 0.6kg / Tool length: 230mm 2x1mm 2
2x1.5mm 2
2x2.5mm 2
2x4mm 2
2x6mm 2
AWG 20-10 x 2
Tool weight: 0.6kg
Tool length: 230mm

Model No.: LY-210TW Model No.: LY-25NWF
Crimping Range: Crimping Range:
2x6mm 2 End sleeves: 10-25mm 2
2x10mm 2 Twin end sleeves:
2x16mm 2 2x4mm 2
AWG 10-5 x 2 2x6mm 2
Tool weight: 0.6kg 2x10mm 2
Tool length: 230mm Tool weight: 0.6kg
Tool length: 230mm

Model No.: LY-35NWF Model No.: LY-50NWF
Crimping Range: Crimping Range:
End sleeves: 16-35mm 2 End sleeves: 35-50mm 2
Twin end sleeves: Twin end sleeves:
2x6mm 2 2x16mm 2
2x10mm 2 2x25mm 2
2x16mm 2 Tool weight: 0.6kg
Tool weight: 0.6kg Tool length: 230mm
Tool length: 230mm

For insulated crimp-style cable lugs
and insulated shrink connectors
Oval shape crimping

Model No.: LY-03C3 2
Crimping Range: R: 0.5-1.5mm AWG20-16
2
B: 2.5mm AWG14
DIN: 0.5-6mm Y: 4-6mm AWG12-10
2
2
AWG: 20-10
Tool weight: 0.6kg
Tool length: 230mm
