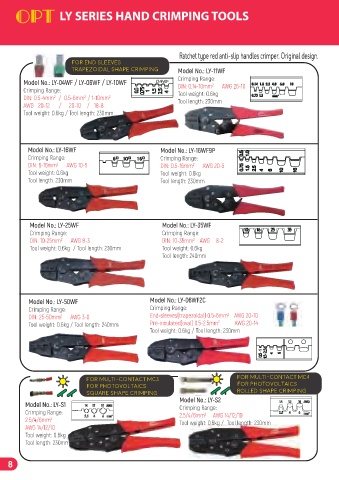

LY SERIES HAND CRIMPING TOOLS

Ratchet type red anti-slip handles crimper. Original design.
For end sleeves
Trapezoidal shape crimping Model No.: LY-11WF
Crimping Range:
Model No.: LY-04WF / LY-06WF / LY-10WF 04WF DIN: 0.14-10mm 2 AWG 26-10
Crimping Range: Tool weight: 0.6kg
DIN: 0.5-4mm / 0.5-6mm / 1-10mm 2 Tool length: 230mm
2
2
AWG 20-12 / 20-10 / 18-8
Tool weight: 0.6kg / Tool length: 230mm

Model No.: LY-16WF Model No.: LY-16WF9P
Crimping Range: Crimping Range:
DIN: 6-16mm 2 AWG 10-5 DIN: 0.5-16mm 2 AWG 20-5
Tool weight: 0.6kg Tool weight: 0.6kg
Tool length: 230mm Tool length: 230mm

Model No.: LY-25WF Model No.: LY-35WF
Crimping Range: Crimping Range:
DIN: 10-25mm 2 AWG 8-3 DIN: 10-35mm AWG 8-2
2
Tool weight: 0.6kg / Tool length: 230mm Tool weight: 0.6kg
Tool length: 240mm

Model No.: LY-50WF Model No.: LY-06WF2C
Crimping Range: Crimping Range:
2
DIN: 25-50mm 2 AWG 3-0 End-sleeves(trapezoidal) 0.5-6mm AWG 20-10
Tool weight: 0.6kg / Tool length: 240mm Pre-insulated(oval) 0.5-2.5mm 2 AWG 20-14
Tool weight: 0.6kg / Tool length: 230mm

For multi-contact MC3 For multi-contact MC4
for photovoltaics for photovoltaics
Square shape crimping ROLLED shape crimping
Model No.: LY-S2
Model No.: LY-S1 Crimping Range:
Crimping Range: 2.5/4/6mm 2 AWG 14/12/10
2.5/4/6mm 2 Tool weight: 0.6kg / Tool length: 230mm
AWG 14/12/10
Tool weight: 0.6kg
Tool length: 230mm
