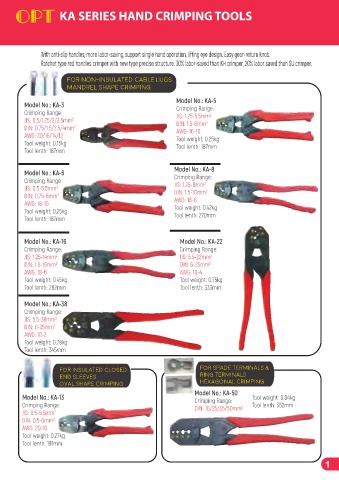

KA SERIES HAND CRIMPING TOOLS

With anti-slip handles, more labor-saving, support single hand operation, lifting eye design. Easy gear-return knob.
Ratchet type red handles crimper with new type precise structure. 30% labor-saved than KH crimper, 20% labor saved than SU crimper.

For non-insulated cable lugs
Mandrel shape crimping

Model No.: KA-5
Model No.: KA-3 Crimping Range:
Crimping Range: JIS: 1.25-5.5mm 2
JIS: 0.5/1.25/2/3.5mm 2 DIN: 1.5-6mm 2
DIN: 0.75/1.5/2.5/4mm 2 AWG: 16-10
AWG: 20/16/14/12 Tool weight: 0.25kg
Tool weight: 0.15kg Tool lenth: 187mm
Tool lenth: 187mm

Model No.: KA-8
Model No.: KA-6 Crimping Range:
Crimping Range: 2
JIS: 0.5-5.5mm 2 JIS: 1.25-8mm 2
DIN: 1.5-10mm
DIN: 0.75-6mm AWG: 18-8
2
AWG: 18-10
Tool weight: 0.25kg Tool weight: 0.42kg
Tool lenth: 270mm
Tool lenth: 187mm

Model No.: KA-16 Model No.: KA-22
Crimping Range: Crimping Range:
JIS: 1.25-14mm 2 JIS: 5.5-22mm 2
DIN: 1.5-16mm DIN: 6-25mm 2
2
AWG: 18-6 AWG: 10-4
Tool weight: 0.45kg Tool weight: 0.75kg
Tool lenth: 282mm Tool lenth: 333mm

Model No.: KA-38
Crimping Range:
JIS: 5.5-38mm 2
DIN: 6-35mm 2
AWG: 10-2
Tool weight: 0.78kg
Tool lenth: 345mm

For insulated closed For spade terminals &
end sleeves ring terminals
Oval shape crimping Hexagonal crimping
Model No.: KA-50
Model No.: KA-13 Crimping Range: Tool weight: 0.84kg
Crimping Range: DIN: 16/25/35/50mm 2 Tool lenth: 352mm
JIS: 0.5-5.5mm 2
DIN: 0.5-6mm
2
AWG: 20-10
Tool weight: 0.27kg
Tool lenth: 191mm
